LTC6811HG-2#PBF - Analog Devices

Description: Multicell Battery Balancer Automotive 48-Pin SSOP Tube

Download LTC6811HG-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

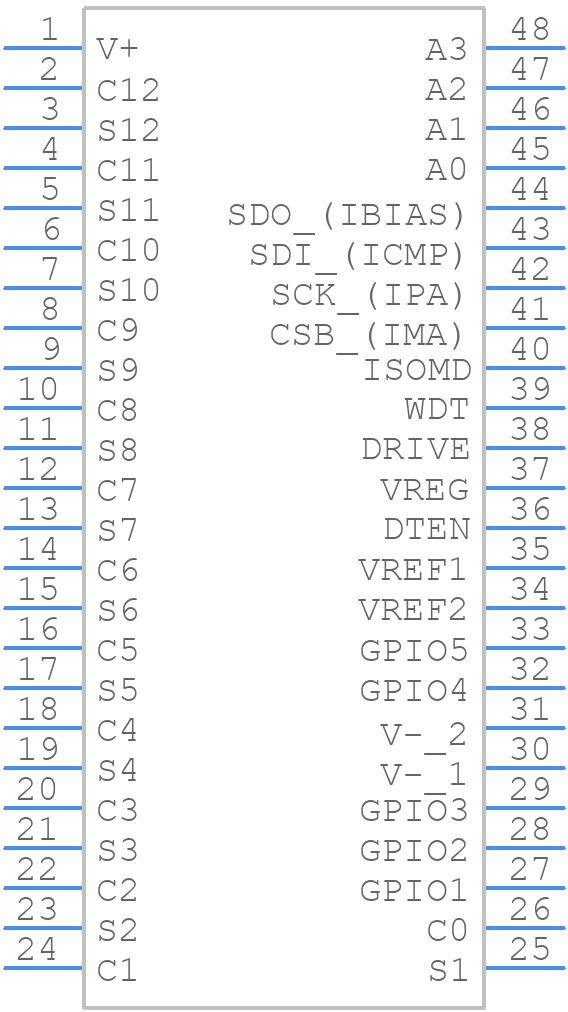

LTC6811HG-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6811HG-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 48-Lead Plastic SSOP (5.3mm)
click to zoom
3D Models
LTC6811HG-2#PBF - Analog Devices - 3D model - Small Outline Packages - 48-Lead Plastic SSOP (5.3mm)
click to zoom

LTC6811HG-2#PBF Details

  • Manufacturer Part Number:

    LTC6811HG-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1887

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    55 V

  • Supply Voltage-Min (Vsup):

    11 V

  • Supply Voltage-Nom (Vsup):

    40 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC6811HG-2#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the analog signals and keep the sensitive analog traces away from the digital traces.
  • Calibration involves adjusting the internal voltage reference and temperature sensor offsets. Use the datasheet-provided calibration procedure, which involves applying known voltage and temperature inputs and adjusting the internal registers accordingly.
  • Up to 12 LTC6811HG-2#PBF devices can be connected in a daisy-chain configuration using the SPI interface. However, the maximum number of devices may be limited by the system's noise tolerance and the quality of the PCB layout.
  • Ensure good thermal conductivity between the device and the PCB. Use thermal vias and a thermal pad on the PCB to dissipate heat. Keep the device away from heat sources and ensure good airflow in the system.
  • Power up the device in the following sequence: VCC, VIO, and then the clock signal. Ensure that the power supplies are stable and within the specified voltage ranges before applying the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6811HG-2#PBF Overview

Use the download button to access the LTC6811HG-2#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC68, or try a keyword search, such as Power Management Circuits
