LTC6811IG-1#TRPBF - Analog Devices

Description: n Pin-Compatible Upgrade from the LTC6804 n Measures Up to 12 Battery Cells in Series n 1.2mV Maximum Total Measurement Error n Stackable Architecture for High Voltage Systems n Built-in isoSPITM Interface 48-Lead SSOP Package

Download LTC6811IG-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

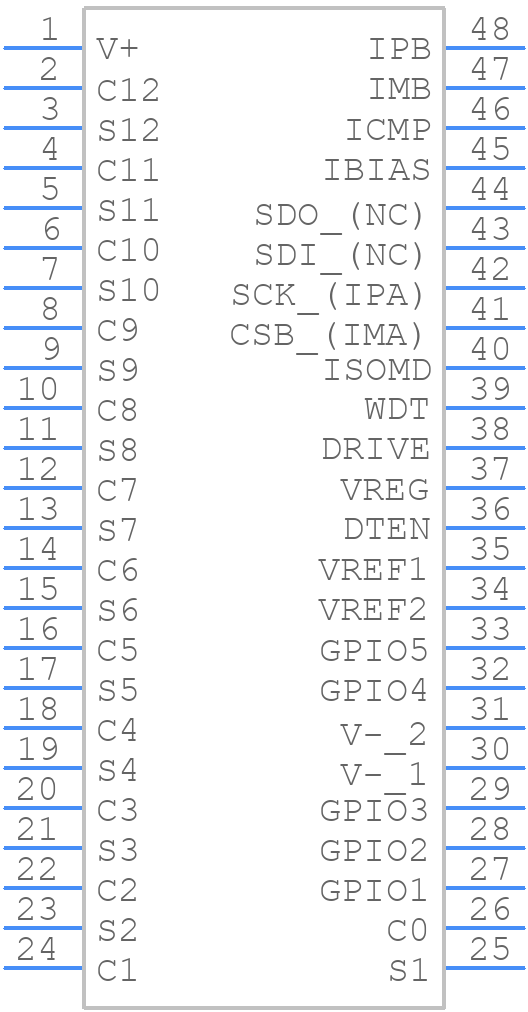

LTC6811IG-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

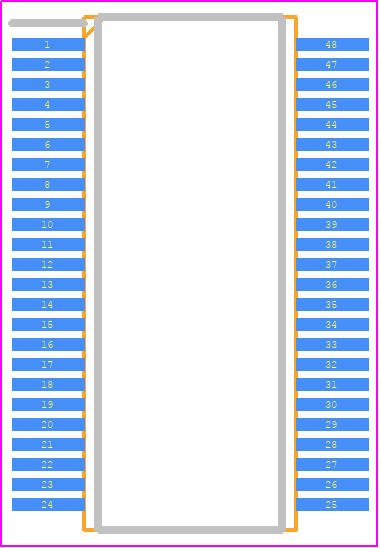

LTC6811IG-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 48-Lead Plastic SSOP (5.3mm) - G package.
click to zoom
3D Models
LTC6811IG-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - 48-Lead Plastic SSOP (5.3mm) - G package.
click to zoom

LTC6811IG-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6811IG-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1887

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    55 V

  • Supply Voltage-Min (Vsup):

    11 V

  • Supply Voltage-Nom (Vsup):

    40 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC6811IG-1#TRPBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the analog signals and keep the sensitive analog traces away from the digital traces.
  • Calibration involves adjusting the gain and offset of the ADCs. Use the datasheet's calibration procedure, which involves applying known voltages and temperatures to the inputs and adjusting the internal registers to achieve accurate measurements.
  • Up to 12 LTC6811IG-1#TRPBF devices can be daisy-chained together using the SPI interface, allowing for the monitoring of up to 384 cells.
  • The LTC6811IG-1#TRPBF operates from -40°C to 125°C. Ensure good thermal design and heat dissipation in the system to keep the device within its specified temperature range.
  • The recommended input voltage range is 2.7V to 5.5V. Operating the device outside this range may affect its performance and accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6811IG-1#TRPBF Overview

Use the download button to access the LTC6811IG-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC68, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
