LTC6902IMS#PBF - Analog Devices

Description: LTC6902IMS#PBF, Silicon Oscillator, 20MHz, 10-Pin MSOP

Download LTC6902IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

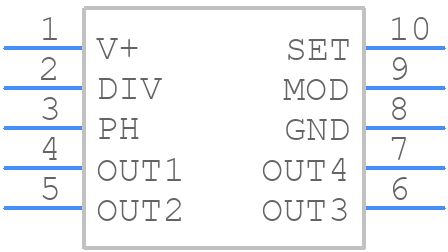

LTC6902IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6902IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package-ren1
click to zoom
3D Models
LTC6902IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package-ren1
click to zoom

LTC6902IMS#PBF Details

  • Manufacturer Part Number:

    LTC6902IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER
