Part Image

LTC6904CMS8#PBF - Analog Devices

Description: Programmable oscillator,1K-68MHz,I2C LTC6904CMS8#PBF, Voltage Controlled Oscillator,, 8-Pin MSOP-8 3x3mm

Download LTC6904CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

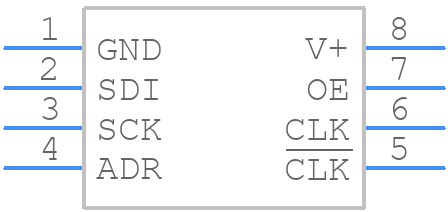

Symbol
LTC6904CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6904CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8(MSOP)
click to zoom
3D Models
LTC6904CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8(MSOP)
click to zoom

LTC6904CMS8#PBF Details

  • Manufacturer Part Number:

    LTC6904CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT ENABLE FUNCTION

  • Fall Time-Max:

    1 ns

  • Frequency Adjustment-Mechanical:

    NO

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    68 MHz

  • Operating Frequency-Min:

    0.001 MHz

  • Operating Temperature-Max:

    70 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 pF

  • Physical Dimension:

    3.0mm x 3.0mm x 1.1mm

  • Rise Time-Max:

    1 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    51/49 %

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC6904CMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6904CMS8 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating to ensure stability and minimize output voltage ripple. A 10uF to 22uF ceramic capacitor is a good starting point.
  • The LTC6904CMS8 can handle input voltages up to 12V, but it's recommended to keep the input voltage below 10V to ensure reliable operation and minimize power dissipation.
  • The LTC6904CMS8 can be synchronized with an external clock signal applied to the SYNC pin. The external clock frequency should be within the range of 100kHz to 400kHz, and the SYNC pin should be driven with a logic-level signal.
  • The LTC6904CMS8 can deliver up to 200mA of output current, but the actual output current capability depends on the input voltage, output voltage, and ambient temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6904CMS8#PBF Overview

Use the download button to access the LTC6904CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as XO

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
