LTC6904HMS8#PBF - Analog Devices

Description: Silicon Oscillator - 0.001MHz to 68MHz Squarewave Automotive 8-Pin MSOP Tube

Download LTC6904HMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

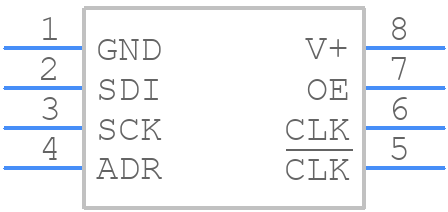

LTC6904HMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6904HMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8
click to zoom
3D Models
LTC6904HMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP8
click to zoom

LTC6904HMS8#PBF Details

  • Manufacturer Part Number:

    LTC6904HMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT ENABLE FUNCTION

  • Fall Time-Max:

    1 ns

  • Frequency Adjustment-Mechanical:

    NO

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    68 MHz

  • Operating Frequency-Min:

    0.001 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 pF

  • Physical Dimension:

    3.0mm x 3.0mm x 1.1mm

  • Rise Time-Max:

    1 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    51/49 %

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC6904HMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6904HMS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The maximum output current of the LTC6904HMS8 is 20mA. However, it's recommended to derate the output current to ensure reliable operation and to prevent overheating.
  • While the LTC6904HMS8 can be used as a voltage regulator, it's not its primary function. The device is designed as a precision oscillator, and its output voltage regulation is limited. If you need a voltage regulator, consider using a dedicated voltage regulator IC.
  • To synchronize the LTC6904HMS8 with an external clock source, connect the external clock signal to the SYNC pin. Ensure the external clock frequency is within the recommended range (1kHz to 100kHz) and that the clock signal is properly terminated to prevent reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6904HMS8#PBF Overview

Use the download button to access the LTC6904HMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as XO

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
