LTC6904HMS8#TRPBF - Analog Devices

Description: Silicon Oscillator - 0.001MHz to 68MHz Squarewave Automotive 8-Pin MSOP T/R

Download LTC6904HMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

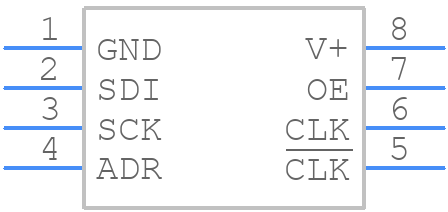

LTC6904HMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6904HMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6904HMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC6904HMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC6904HMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    TAPE AND REEL; OUTPUT ENABLE FUNCTION

  • Fall Time-Max:

    1 ns

  • Frequency Adjustment-Mechanical:

    NO

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    68 MHz

  • Operating Frequency-Min:

    0.001 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 pF

  • Physical Dimension:

    3.0mm x 3.0mm x 1.1mm

  • Rise Time-Max:

    1 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    51/49 %

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC6904HMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6904HMS8#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN137 for more details.
  • The output frequency of the LTC6904HMS8#TRPBF depends on the specific requirements of your application. Consider factors such as the clock frequency of your microcontroller, the desired frequency of your system clock, and the noise tolerance of your system. The device can be programmed to output frequencies from 1kHz to 33.55MHz.
  • The maximum output current of the LTC6904HMS8#TRPBF is 10mA. However, it's recommended to limit the output current to 5mA or less to ensure reliable operation and minimize power consumption.
  • The LTC6904HMS8#TRPBF can be programmed using a 3-wire serial interface. The device has a 16-bit frequency register that can be written to using the SDI (serial data input) pin. Refer to the datasheet for the specific programming sequence and frequency calculation formula.
  • The typical power consumption of the LTC6904HMS8#TRPBF is 10mA at 3.3V supply voltage. However, the actual power consumption may vary depending on the output frequency, load capacitance, and other factors.
