LTC6904IMS8#TRPBF - Analog Devices

Description: Silicon Oscillator - 0.001MHz to 68MHz Squarewave Automotive 8-Pin MSOP T/R

Download LTC6904IMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

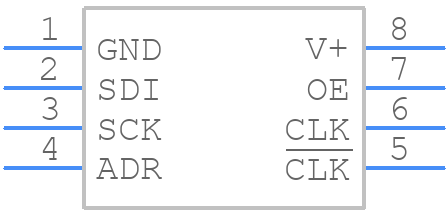

LTC6904IMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6904IMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev F)
click to zoom
3D Models
LTC6904IMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev F)
click to zoom

LTC6904IMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC6904IMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    TAPE AND REEL; OUTPUT ENABLE FUNCTION

  • Fall Time-Max:

    1 ns

  • Frequency Adjustment-Mechanical:

    NO

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    68 MHz

  • Operating Frequency-Min:

    0.001 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 pF

  • Physical Dimension:

    3.0mm x 3.0mm x 1.1mm

  • Rise Time-Max:

    1 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    51/49 %

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC6904IMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6904IMS8 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The output frequency of the LTC6904IMS8 depends on the specific requirements of your application. Consider factors such as the clock frequency required by your microcontroller or other devices, the noise tolerance of your system, and the power consumption constraints. The datasheet provides a formula to calculate the output frequency based on the values of the external resistors and capacitors.
  • The maximum output current of the LTC6904IMS8 is 20mA. However, the output current should be limited to 10mA or less to ensure reliable operation and to prevent overheating. The output current can be limited by adding a series resistor or by using a current-limiting circuit.
  • To synchronize the output of multiple LTC6904IMS8 devices, connect the SYNC pin of each device to a common clock signal. This ensures that all devices oscillate at the same frequency and are phase-locked to each other. The SYNC pin can be driven by an external clock signal or by the output of one of the devices.
  • The LTC6904IMS8's performance is affected by temperature, with the output frequency and amplitude varying with temperature. The device is specified to operate over a temperature range of -40°C to 125°C, and the datasheet provides graphs and equations to estimate the temperature-related variations in performance.
