LTC6911HMS-1#PBF - Analog Devices

Description: Programmable Gain Amplifier 2 Circuit Rail-to-Rail 10-MSOP

Download LTC6911HMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

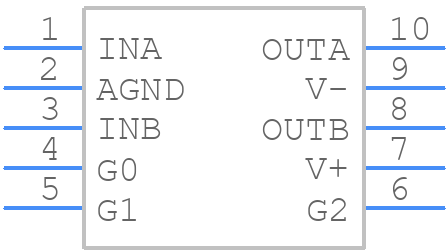

LTC6911HMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6911HMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - g 10-Lead Plastic MSOP
click to zoom
3D Models
LTC6911HMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - g 10-Lead Plastic MSOP
click to zoom

LTC6911HMS-1#PBF Details

  • Manufacturer Part Number:

    LTC6911HMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.25 V

  • Neg Supply Voltage-Min (Vsup):

    -1.35 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    1.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6911HMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6911HMS-1#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, the LTC6911HMS-1#PBF requires a minimum output capacitance of 10uF, and the output voltage should be decoupled from the input voltage using a capacitor. Additionally, the device should be operated within its recommended operating conditions, and the input and output voltages should be within the specified ranges. It's also important to follow the recommended PCB layout and to minimize parasitic inductance and capacitance.
  • The LTC6911HMS-1#PBF can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LTC6911HMS-1#PBF is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. Analog Devices provides a variety of screening options, including burn-in and environmental testing, to ensure the device meets the required standards. Additionally, the device's reliability and performance should be evaluated and validated for the specific application.
  • To troubleshoot issues with the LTC6911HMS-1#PBF, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check the PCB layout and ensure that it follows the recommended layout and land pattern. Use an oscilloscope to measure the output voltage and verify that it is stable and within the specified range. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support for further assistance.
