LTC691ISW#PBF - Analog Devices

Description: Linear Technology LTC691ISW#PBF, Processor Supervisor Maximum of 4.65 V, WDT, 16-Pin SOIC

Download LTC691ISW#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

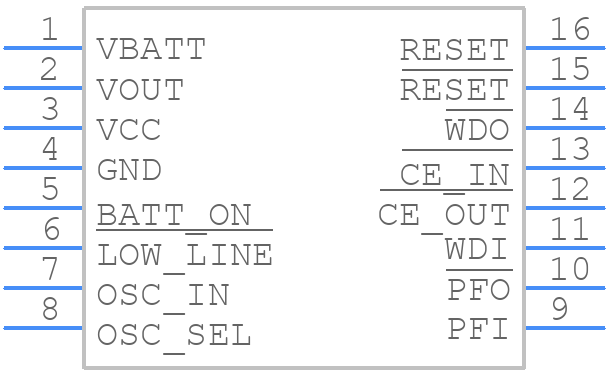

LTC691ISW#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC691ISW#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom
3D Models
LTC691ISW#PBF - Analog Devices - 3D model - Small Outline Packages - SW Package 16-Lead Plastic Small Outline
click to zoom

LTC691ISW#PBF Details

  • Manufacturer Part Number:

    LTC691ISW#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1620 (SW16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

LTC691ISW#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC691ISW involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, add a 10nF to 100nF capacitor in parallel with the output resistor to improve stability. Also, avoid using long output traces and keep the output load capacitance below 100pF.
  • The maximum power dissipation of the LTC691ISW is dependent on the package type and ambient temperature. For the SW package, the maximum power dissipation is 1.67W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the operating temperature and desired reliability.
  • While the LTC691ISW can be used as a voltage regulator, it's not recommended due to its limited power handling capability and lack of built-in overcurrent protection. Instead, consider using a dedicated voltage regulator IC that can handle the required output current and has built-in protection features.
  • The output voltage of the LTC691ISW can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the feedback resistors, VIN is the input voltage, and VREF is the internal reference voltage (1.2V typical).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC691ISW#PBF Overview

Use the download button to access the LTC691ISW#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
