LTC6948IUFD-4#TRPBF - Analog Devices

Description: Ultralow Noise 0.37GHz to 6.39GHz Fractional-N Synthesizer with Integrated VCO

Download LTC6948IUFD-4#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

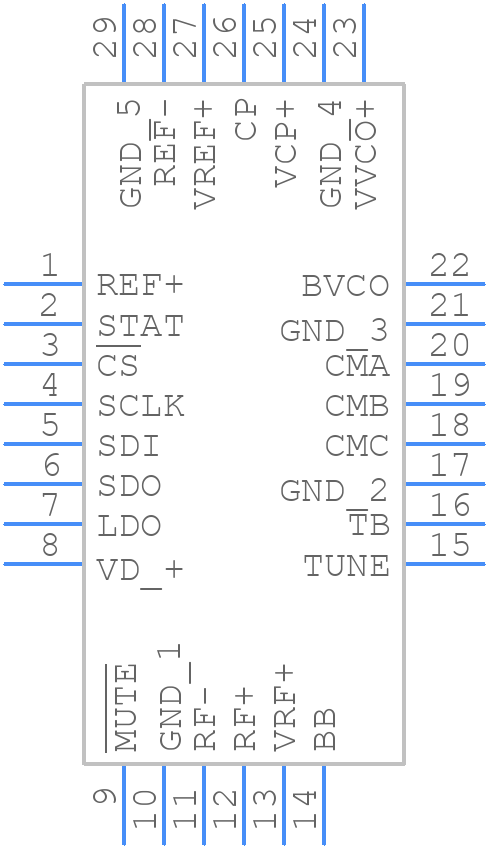

LTC6948IUFD-4#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6948IUFD-4#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom
3D Models
LTC6948IUFD-4#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD PACKAGE 28-LEAD (4mm s 5mm) PLASTIC QFN
click to zoom

LTC6948IUFD-4#TRPBF Details

  • Manufacturer Part Number:

    LTC6948IUFD-4#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER
