A good PCB layout for the LTC6957HMS-3#PBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a stable negative voltage source or ground, depending on the application. The bias voltage should be within the recommended range of 2.7V to 5.5V.
The maximum power dissipation of the LTC6957HMS-3#PBF is 1.4W. However, this can be affected by the operating frequency, supply voltage, and ambient temperature. It's essential to ensure the device is properly heat-sinked and operated within the recommended specifications to prevent overheating.
The LTC6957HMS-3#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure the device is properly heat-sinked and operated within the recommended specifications to prevent overheating and ensure reliable operation.
Common issues with the LTC6957HMS-3#PBF include oscillations, instability, and incorrect output voltage. To troubleshoot, check the PCB layout, decoupling, and biasing. Ensure the device is properly terminated, and the input and output traces are short and well-separated. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTC6957HMS-3#PBF Overview

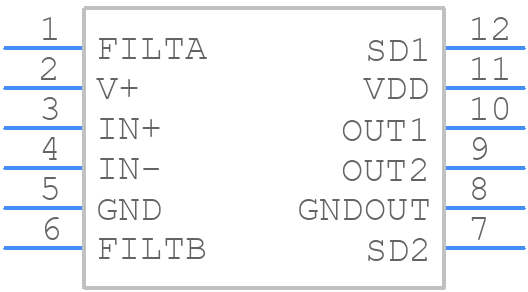

Use the download button to access the LTC6957HMS-3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69,
or try a keyword search, such as Clock Drivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
