LTC6957HMS-4#TRPBF - Analog Devices

Description: LOGIC AND TIMING

Download LTC6957HMS-4#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

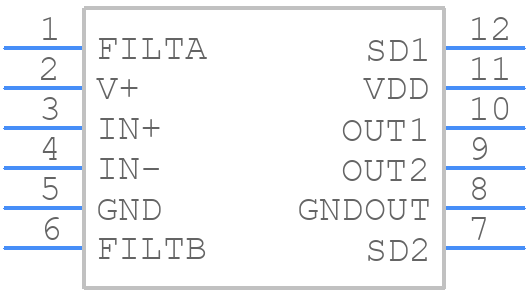

Symbol
LTC6957HMS-4#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6957HMS-4#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom
3D Models
LTC6957HMS-4#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom

LTC6957HMS-4#TRPBF Details

  • Manufacturer Part Number:

    LTC6957HMS-4#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.003 A

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    72 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    4.8 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm
