LTC6957IMS-1#TRPBF - Analog Devices

Description: Clock Fanout Buffer 2-OUT 1-IN 1:2 12-Pin MSOP T/R

Download LTC6957IMS-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

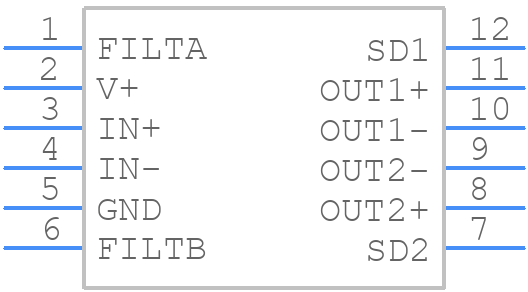

LTC6957IMS-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6957IMS-1#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom
3D Models
LTC6957IMS-1#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom

LTC6957IMS-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6957IMS-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    6957

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    22 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.03 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC6957IMS-1#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6957IMS-1#TRPBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN137 for more details.
  • The LTC6957IMS-1#TRPBF requires a proper power-up sequence to ensure correct operation. The VCC pin should be powered up first, followed by the VDD pin. The device also requires a reset pulse on the RST pin to initialize the internal registers. Refer to the datasheet section 7.1 for more details.
  • The maximum clock frequency for the LTC6957IMS-1#TRPBF is 3.2 GHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal. It is recommended to use a high-quality clock source and to follow proper PCB layout and routing guidelines to minimize clock signal degradation.
  • The LTC6957IMS-1#TRPBF can be configured for a specific frequency band using the SPI interface. The device has several registers that control the frequency band, including the N divider, R divider, and PLL loop filter. Refer to the datasheet section 7.2 for more details on how to configure the device for a specific frequency band.
  • The typical power consumption of the LTC6957IMS-1#TRPBF is around 1.2W at 3.2 GHz clock frequency. However, the actual power consumption may vary depending on the specific application, clock frequency, and operating conditions. Refer to the datasheet section 6 for more details on power consumption.
