LTC6957IMS-3#TRPBF - Analog Devices

Description: Clock Buffer Low Phase Noise, Dual Output Buffer/Driver/Logic Converter with CMOS Outputs

Download LTC6957IMS-3#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

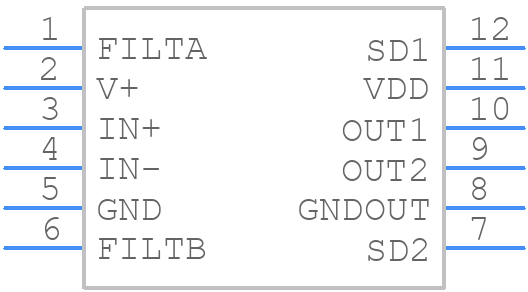

LTC6957IMS-3#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6957IMS-3#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP1
click to zoom
3D Models
LTC6957IMS-3#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP1
click to zoom

LTC6957IMS-3#TRPBF Details

  • Manufacturer Part Number:

    LTC6957IMS-3#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    6957

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    27.5 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    4.8 ns

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC6957IMS-3#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6957 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the device. Additionally, a small series resistor (e.g., 10Ω) can be added between the output and the capacitor to improve stability.
  • The maximum input voltage that the LTC6957 can handle is 12V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage stays within the specified range.
  • While the LTC6957 is a voltage-controlled oscillator, it's not designed to be used as a voltage regulator. The device is intended for generating a stable clock signal, not for regulating voltage. Using it as a voltage regulator may lead to instability and reduced performance.
  • To synchronize multiple LTC6957 devices, connect the SYNC pin of each device together and drive them with a common clock signal. This ensures that all devices are synchronized and output the same frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6957IMS-3#TRPBF Overview

Use the download button to access the LTC6957IMS-3#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Clock Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
