LTC6993MPS6-1#TRPBF - Analog Devices

Description: Monostable Multi-vibrator ONE SHOT with Rising Edge Trigger, Non-Retriggerable

Download LTC6993MPS6-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

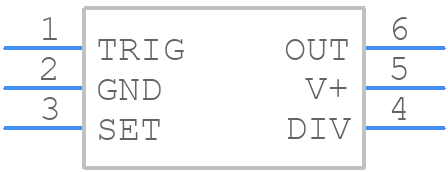

Symbol
LTC6993MPS6-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6993MPS6-1#TRPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Lead Plastic TSOT-2+
click to zoom
3D Models
LTC6993MPS6-1#TRPBF - Analog Devices - 3D model - SOT23 (6-Pin) - 6-Lead Plastic TSOT-2+
click to zoom

LTC6993MPS6-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6993MPS6-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    6993

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC6993MPS6-1#TRPBF Frequently Asked Questions (FAQs)

  • It is recommended to place the LTC6993MPS6-1#TRPBF close to the power supply and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • Use a 10uF ceramic capacitor between the VCC pin and GND, and a 100nF ceramic capacitor between the VCC pin and the output pin. This will help to filter out high-frequency noise and ensure stable operation.
  • The LTC6993MPS6-1#TRPBF can handle input frequencies up to 100kHz. However, the device's performance may degrade at higher frequencies, and it's recommended to use a low-pass filter to remove high-frequency noise.
  • The output frequency of the LTC6993MPS6-1#TRPBF can be adjusted by changing the values of the external resistors R1 and R2. A higher value of R1 will result in a lower output frequency, while a higher value of R2 will result in a higher output frequency.
  • The maximum output current of the LTC6993MPS6-1#TRPBF is 20mA. However, it's recommended to keep the output current below 10mA to ensure reliable operation and minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6993MPS6-1#TRPBF Overview

Use the download button to access the LTC6993MPS6-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Prescaler/Multivibrators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
