Part Image

LTC6995IS6-1#TRPBF - Analog Devices

Description: IC OSC SILICON PROG TSOT23-6

Download LTC6995IS6-1#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

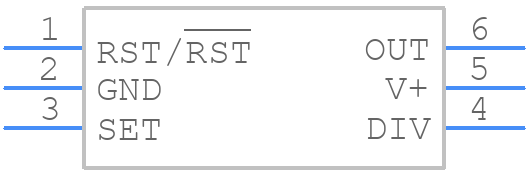

LTC6995IS6-1#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6995IS6-1#TRPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - S6 Package 6-Lead Plastic TSOT-23-2022
click to zoom
3D Models
LTC6995IS6-1#TRPBF - Analog Devices - 3D model - SOT23 (6-Pin) - S6 Package 6-Lead Plastic TSOT-23-2022
click to zoom

LTC6995IS6-1#TRPBF Details

  • Manufacturer Part Number:

    LTC6995IS6-1#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Frequency Adjustment-Mechanical:

    NO

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    0.000977 MHz

  • Operating Frequency-Min:

    0.0000291 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP6,.11,37

  • Packing Method:

    TR

  • Physical Dimension:

    2.9mm x 1.75mm x 1.0mm

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    50/50 %

  • Terminal Finish:

    Matte Tin (Sn)

LTC6995IS6-1#TRPBF Frequently Asked Questions (FAQs)

  • It is recommended to place the LTC6995IS6-1#TRPBF close to the power supply and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • Use a 10uF ceramic capacitor between the VCC pin and GND, and a 100nF ceramic capacitor between the VCC pin and the output pin. This will help to filter out high-frequency noise and ensure stable operation.
  • The LTC6995IS6-1#TRPBF can handle input frequencies up to 100kHz. However, the device's performance may degrade at higher frequencies due to internal filtering and settling time limitations.
  • The LTC6995IS6-1#TRPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's specifications and ensure proper thermal management in high-temperature applications.
  • Check the power supply voltage, input signal amplitude, and output load impedance to ensure they are within the recommended specifications. Also, verify that the device is properly bypassed and that the layout and placement are optimal. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6995IS6-1#TRPBF Overview

Use the download button to access the LTC6995IS6-1#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as XO
