LTC7001HMSE#PBF - Analog Devices

Description: ANALOG DEVICES - LTC7001HMSE#PBF - Gate Driver, 1 Channels, High Side, MOSFET, 10 Pins, MSOP-EP

Download LTC7001HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

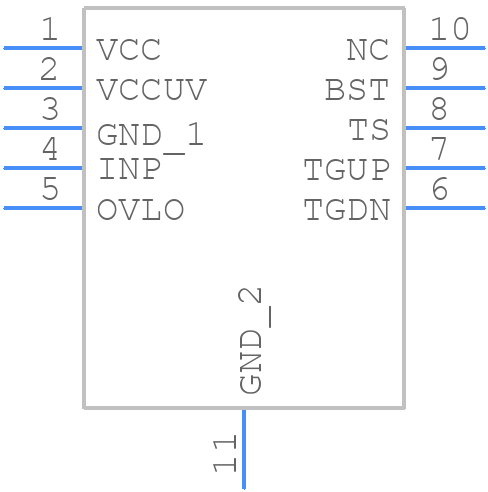

LTC7001HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7001HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead MSOP, Exposed Die Pad
click to zoom
3D Models
LTC7001HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead MSOP, Exposed Die Pad
click to zoom

LTC7001HMSE#PBF Details

  • Manufacturer Part Number:

    LTC7001HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max:

    135 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    135 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    70 µs

  • Turn-on Time:

    70 µs

  • Width:

    3 mm

LTC7001HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7001 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The LTC7001 can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V or less to ensure reliable operation and minimize the risk of damage.
  • The LTC7001 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC7001, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or ringing on the output. If issues persist, consult the datasheet and application notes for guidance.
