LTC7060EMSE#PBF - Analog Devices

Description: 100V Half-Bridge Driver with Floating Grounds and Adjustable Dead-Time

Download LTC7060EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

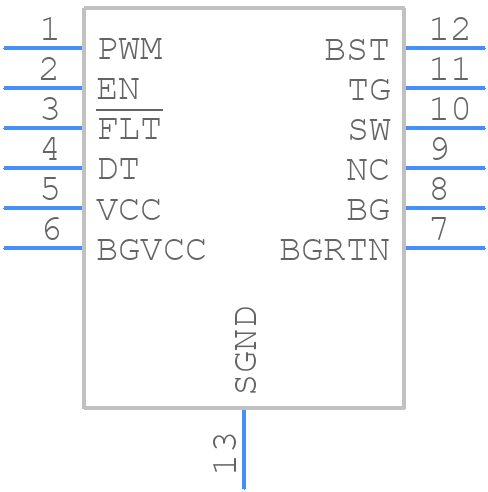

LTC7060EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7060EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE 12-LEAD_1
click to zoom
3D Models
LTC7060EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE 12-LEAD_1
click to zoom

LTC7060EMSE#PBF Details

  • Manufacturer Part Number:

    LTC7060EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.036 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

LTC7060EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7060 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) as they can cause oscillations.
  • The maximum input voltage that the LTC7060 can handle is 15V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a TVS diode, to prevent overvoltage conditions.
  • The LTC7060 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage ripple of the LTC7060 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
