LTC7060EMSE#TRPBF - Analog Devices

Description: Unique Symmetric Floating Gate Driver Architecture n High Noise Immunity,Tolerates ±10V Ground Difference between Input and Output Grounds n 100V Maximum Input Voltage Independent of IC Supply Voltage VCC n 6V to 14V VCC Operating Voltage n 4V to 14V Gate Driver Voltage n 0.8Ω Pull-Down, 1.5Ω Pull-Up for Fast Turn-On/Off n Adaptive Shoot-Through Protection n Programmable Dead-Time n Three-State PWM Input with Enable Pin n VCC UVLO/OVLO and Floating Supplies UVLO

Download LTC7060EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

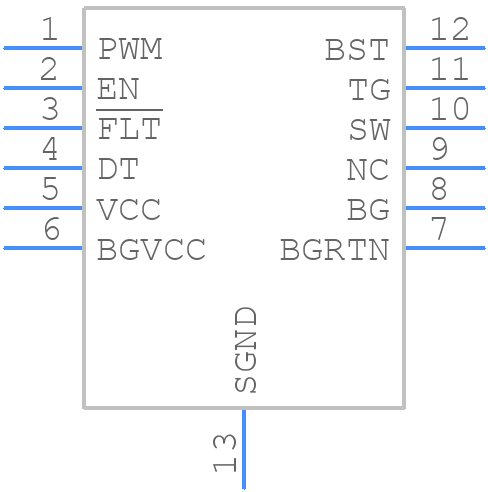

LTC7060EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7060EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC7060EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC7060EMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC7060EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.036 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

LTC7060EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7060EMSE#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. You can also add a small series resistor (e.g., 1Ω) between the output capacitor and the load to improve stability.
  • The LTC7060EMSE#TRPBF is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating, especially in high-power applications.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor values and types are carefully selected to ensure optimal performance and efficiency. If you must use a different inductor, make sure to re-evaluate the design and ensure that it meets the required specifications.
  • To troubleshoot issues with your design, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal management. Use an oscilloscope to inspect the output voltage ripple, switching frequency, and input/output currents. Consult the datasheet and application notes for guidance on troubleshooting common issues.
