LTC7060IMSE#WTRPBF - Analog Devices

Description: Gate Drivers 100V Half Bridge Driver w/ Floating Grds

Download LTC7060IMSE#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

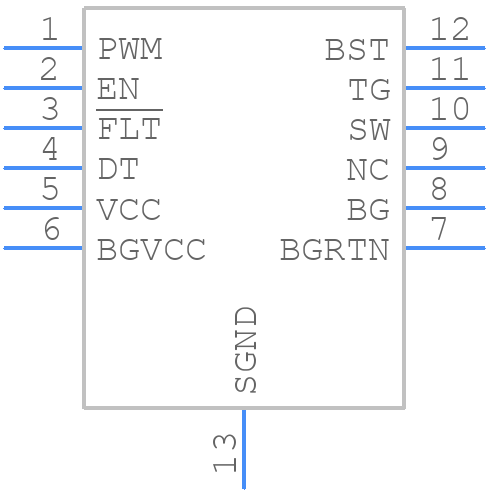

LTC7060IMSE#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7060IMSE#WTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP*-*
click to zoom
3D Models
LTC7060IMSE#WTRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP*-*
click to zoom

LTC7060IMSE#WTRPBF Details

  • Manufacturer Part Number:

    LTC7060IMSE#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.036 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

LTC7060IMSE#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7060IMSE#WTRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, make sure to follow the recommended compensation network configuration, choose the correct output capacitor value, and ensure that the input and output voltage rails are properly decoupled. Additionally, avoid using long input and output traces, and keep the device away from noise sources.
  • The LTC7060IMSE#WTRPBF is rated for operation from -40°C to 125°C, but the maximum ambient temperature range for reliable operation depends on the specific application and the device's power dissipation. In general, it's recommended to keep the junction temperature below 125°C to ensure reliable operation.
  • The input and output capacitors should be chosen based on the specific requirements of the application, including the input voltage range, output voltage range, and desired ripple and noise performance. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for selecting the correct capacitors.
  • The recommended input voltage range for the LTC7060IMSE#WTRPBF is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. Operating outside the recommended range may affect performance and efficiency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7060IMSE#WTRPBF Overview

Use the download button to access the LTC7060IMSE#WTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC70, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
