LTC7061EMSE#TRPBF - Analog Devices

Description: 100V Half Bridge Driver with Floating Grounds and Adjustable Dead-Time

Download LTC7061EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

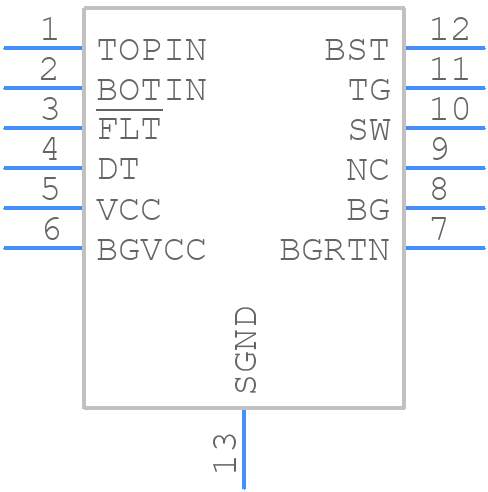

LTC7061EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7061EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom
3D Models
LTC7061EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom

LTC7061EMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC7061EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    439 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    39 µs

  • Width:

    3 mm

LTC7061EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7061EMSE is crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The selection of input and output capacitors for the LTC7061EMSE depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage ripple, while the output capacitor should be able to handle the output voltage ripple and provide sufficient filtering. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
  • The LTC7061EMSE is rated for operation up to 125°C ambient temperature. However, it is recommended to derate the device's performance at higher temperatures to ensure reliable operation. It is also important to consider the thermal resistance of the package and the PCB layout to ensure that the junction temperature does not exceed the maximum rating.
  • Common issues such as oscillation or instability in the LTC7061EMSE can be caused by a variety of factors, including poor PCB layout, incorrect component selection, or inadequate filtering. To troubleshoot these issues, it is recommended to use a scope to measure the input and output waveforms, and to check for any signs of oscillation or ringing. It is also recommended to verify that the device is properly configured and that the input and output capacitors are properly selected.
  • The recommended input voltage range for the LTC7061EMSE is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It is also important to ensure that the input voltage is well-regulated and free of noise to ensure optimal performance.
