LTC7061IMSE#WPBF - Analog Devices

Description: 100V Half Bridge Driver with Floating Grounds and Adjustable Dead-Time

Download LTC7061IMSE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

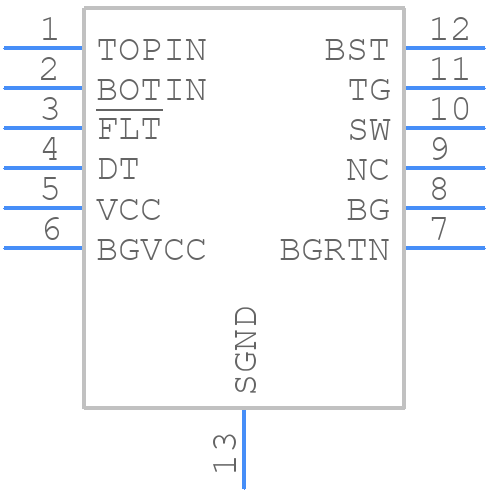

LTC7061IMSE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7061IMSE#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP-1
click to zoom
3D Models
LTC7061IMSE#WPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP-1
click to zoom

LTC7061IMSE#WPBF Details

  • Manufacturer Part Number:

    LTC7061IMSE#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    439 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    39 µs

  • Width:

    3 mm

LTC7061IMSE#WPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7061IMSE#WPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. You can also add a small series resistor (e.g., 1 ohm) between the output capacitor and the load to improve stability.
  • The maximum input voltage that can be applied to the LTC7061IMSE#WPBF is 15V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily determined by the output capacitor value, ESR, and the switching frequency. The noise is primarily determined by the switching frequency, output capacitor value, and the device's internal noise sources.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. The recommended input capacitor value is 10uF to 22uF, depending on the input voltage and the desired level of input ripple rejection.
