LTC7804HUD#PBF - Analog Devices

Description: Low IQ Synchronous?Boost Controller

Download LTC7804HUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

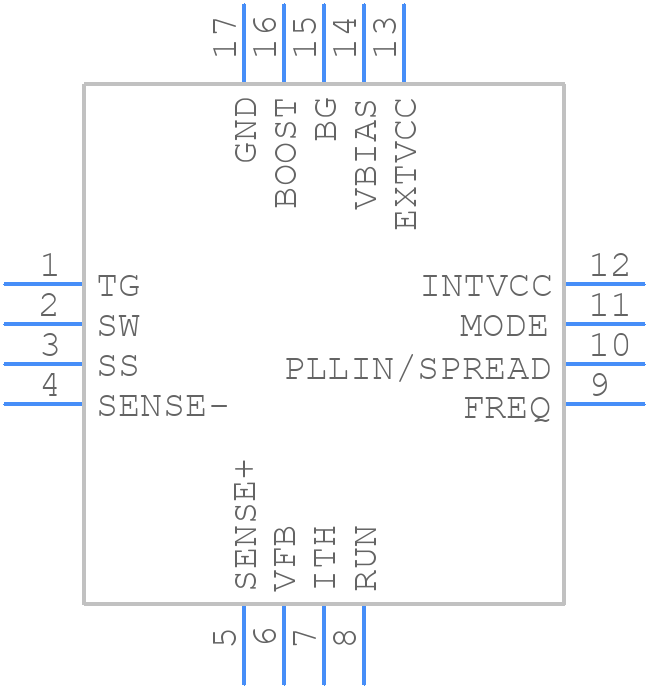

Symbol
LTC7804HUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7804HUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)_2022
click to zoom
3D Models
LTC7804HUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Plastic QFN (3mm × 3mm)_2022
click to zoom

LTC7804HUD#PBF Details

  • Manufacturer Part Number:

    LTC7804HUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    40 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC7804HUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LTC7804HUD#PBF near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the device can help to dissipate heat efficiently.
  • To ensure reliable start-up and operation with a high-impedance input source, it is recommended to add a 1-2uF ceramic capacitor between the input pin and ground, and a 10-22uF electrolytic capacitor between the output pin and ground. This helps to filter out noise and ensure stable operation.
  • The maximum allowed input voltage ripple for reliable operation of the LTC7804HUD#PBF is typically around 10-20% of the input voltage. Exceeding this limit can cause the device to malfunction or oscillate.
  • To protect the LTC7804HUD#PBF from overvoltage and overcurrent conditions, it is recommended to add overvoltage protection (OVP) and overcurrent protection (OCP) circuits. A zener diode or a TVS diode can be used for OVP, and a current sense resistor with a comparator or a dedicated OCP IC can be used for OCP.
  • The recommended input capacitor type for the LTC7804HUD#PBF is a low-ESR ceramic capacitor, such as an X5R or X7R type. The recommended value is typically in the range of 10-22uF, depending on the input voltage and output current requirements.
