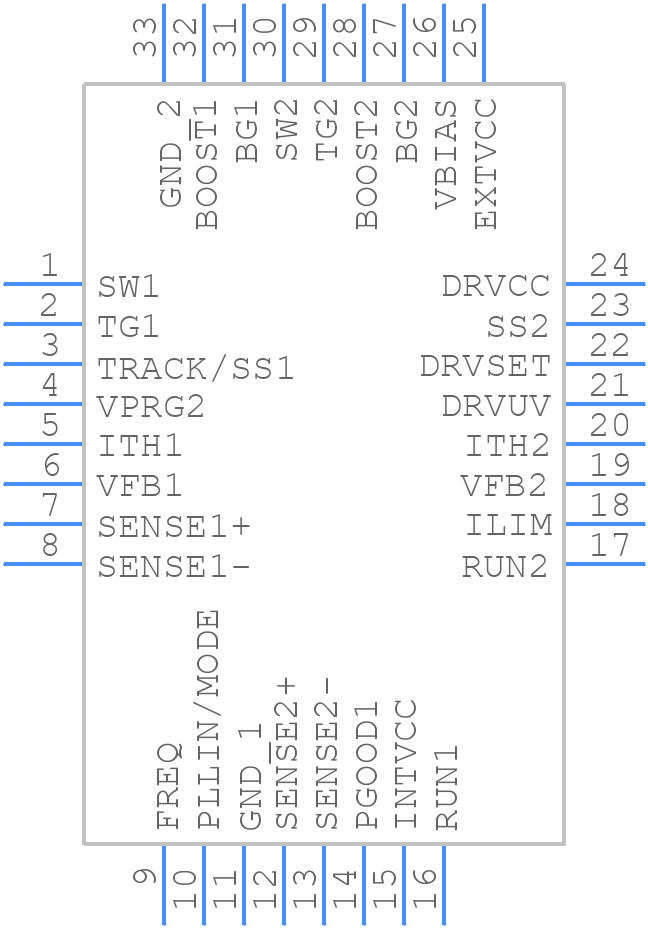

LTC7813HUH#PBF - Analog Devices

LTC7813HUH#PBF Details

• Manufacturer Part Number:

  LTC7813HUH#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  5 X 5 MM, LEAD FREE, PLASTIC, MO-220WHHD-X, QFN-32

• Pin Count:

  32

• Manufacturer Package Code:

  05-08-1693

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  OUTPUT VOLTAGE RANGE FROM 0.8 V TO 60 V

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  60 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Voltage-Max:

  60 V

• Output Voltage-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  900 kHz

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
