LTC7862EFE#PBF - Analog Devices

Description: Surge Suppressors 140V High Efficiency Switching Surge Stopper

Download LTC7862EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

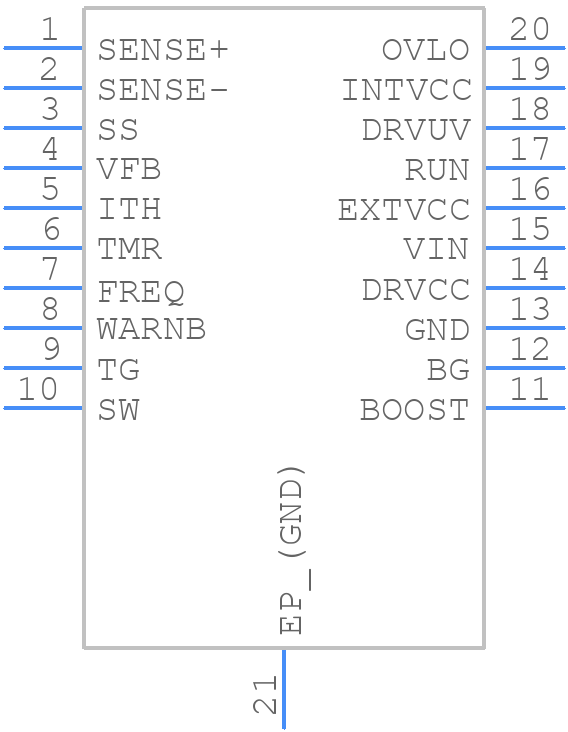

Symbol
LTC7862EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7862EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE (LTC DWG # 05-08-1663 Rev L)
click to zoom
3D Models
LTC7862EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE (LTC DWG # 05-08-1663 Rev L)
click to zoom

LTC7862EFE#PBF Details

  • Manufacturer Part Number:

    LTC7862EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    140 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC7862EFE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Ensure that the output voltage is within the recommended range, and the input voltage is above the minimum specified voltage. Also, use a sufficient output capacitor with a low ESR, and add a small capacitor (e.g., 10nF) between the VFB pin and GND to improve stability.
  • The maximum ambient temperature range for the LTC7862EFE is -40°C to 125°C. However, the junction temperature (TJ) should not exceed 150°C.
  • Yes, the LTC7862EFE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is manufactured with a controlled process flow to ensure high reliability.
  • The power dissipation of the LTC7862EFE can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be estimated from the datasheet's efficiency vs. output current graph.
