LTC7862HFE#PBF - Analog Devices

Description: 140V High Efficiency Switching Surge Stopper

Download LTC7862HFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

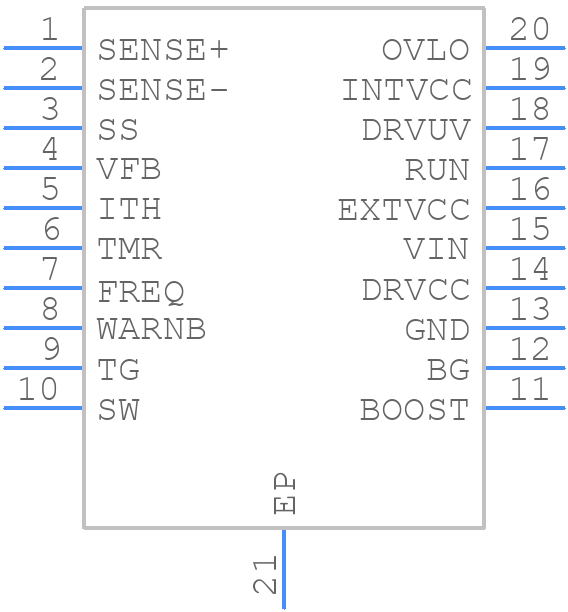

LTC7862HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7862HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE (LTC DWG # 05-08-1663 Rev L)
click to zoom
3D Models
LTC7862HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE (LTC DWG # 05-08-1663 Rev L)
click to zoom

LTC7862HFE#PBF Details

  • Manufacturer Part Number:

    LTC7862HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1663

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    140 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC7862HFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7862HFE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance is recommended.
  • The maximum ambient temperature range for the LTC7862HFE is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LTC7862HFE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is suitable for use in harsh environments.
  • To troubleshoot issues, start by checking the input and output voltages, and ensure that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout meets the recommended guidelines. If issues persist, consult the datasheet and application notes for further guidance.
