LTC7862IFE#TRPBF - Analog Devices

Description: 140V High Efficiency Switching Surge Stopper

Download LTC7862IFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

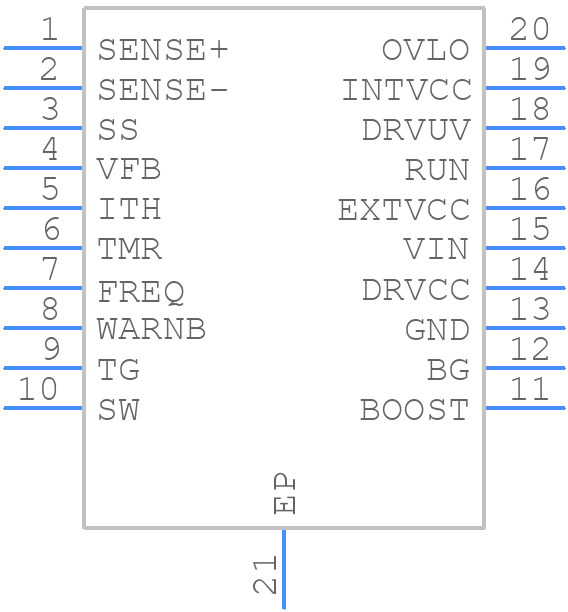

LTC7862IFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7862IFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic TSSOP (h=4.4mm)
click to zoom
3D Models
LTC7862IFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 20-Lead Plastic TSSOP (h=4.4mm)
click to zoom

LTC7862IFE#TRPBF Details

  • Manufacturer Part Number:

    LTC7862IFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1862

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    140 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LTC7862IFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7862IFE involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The selection of input and output capacitors for the LTC7862IFE depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage ripple and the output capacitor should be able to handle the output current. The datasheet provides guidelines for selecting the right capacitors, and additional information can be found in the application notes.
  • The LTC7862IFE can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures, and the maximum operating temperature should be derated based on the specific application and environment.
  • Yes, the LTC7862IFE is designed to meet the requirements of high-reliability and high-availability applications. The device is built with high-quality materials and is tested to ensure high reliability and performance. Additionally, Analog Devices provides a range of reliability and quality data, including MTBF and FIT rates, to support the use of the LTC7862IFE in high-reliability applications.
  • Troubleshooting issues with the LTC7862IFE involves a systematic approach to identify and isolate the problem. This may involve checking the input and output voltages, the device's operating frequency, and the PCB layout. The datasheet and application notes provide guidance on troubleshooting common issues, and additional support can be obtained from Analog Devices' technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7862IFE#TRPBF Overview

Use the download button to access the LTC7862IFE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC78, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
