LTC7872HLXE#WPBF - Analog Devices

Description: Quad-Phase, Synchronous Bidirectional Buck or Boost Controller

Download LTC7872HLXE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

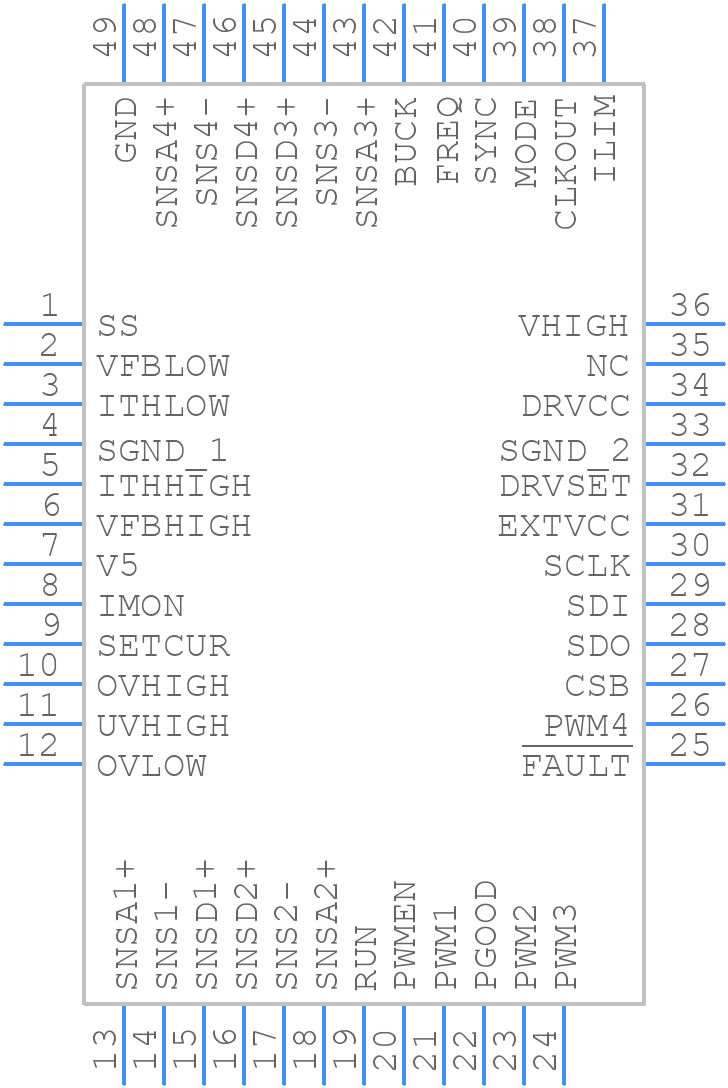

LTC7872HLXE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

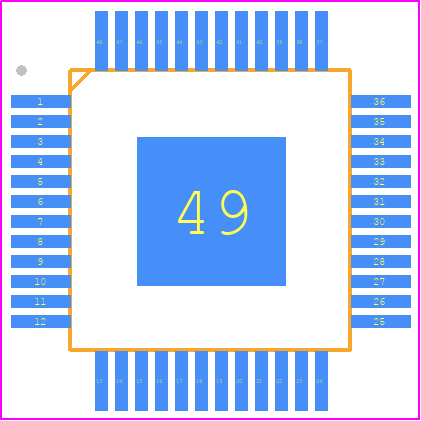

LTC7872HLXE#WPBF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD-2
click to zoom
3D Models
LTC7872HLXE#WPBF - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD-2
click to zoom

LTC7872HLXE#WPBF Details

  • Manufacturer Part Number:

    LTC7872HLXE#WPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    05-08-1832

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    1.2 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP48,.3SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    780 kHz

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

LTC7872HLXE#WPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC7872HLXE#WPBF is -40°C to 125°C.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, and make sure to meet the minimum input voltage and current requirements.
  • For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, including keeping the device away from heat sources, using thermal vias, and ensuring good airflow.
  • To troubleshoot common issues, refer to the datasheet's troubleshooting section, and check for proper power-up sequencing, correct pin connections, and adequate thermal management. Also, use the device's built-in diagnostic features, such as the fault flag output, to identify and isolate issues.
  • Yes, the LTC7872HLXE#WPBF is designed for high-reliability and safety-critical applications, and meets various industry standards, such as AEC-Q100 and IEC 61508. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7872HLXE#WPBF Overview

Use the download button to access the LTC7872HLXE#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC78, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
