LTC9101AUF-1#PBF - Analog Devices

Description: 48-Port IEEE 802.3bt PoE PSE Digital Controller

Download LTC9101AUF-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

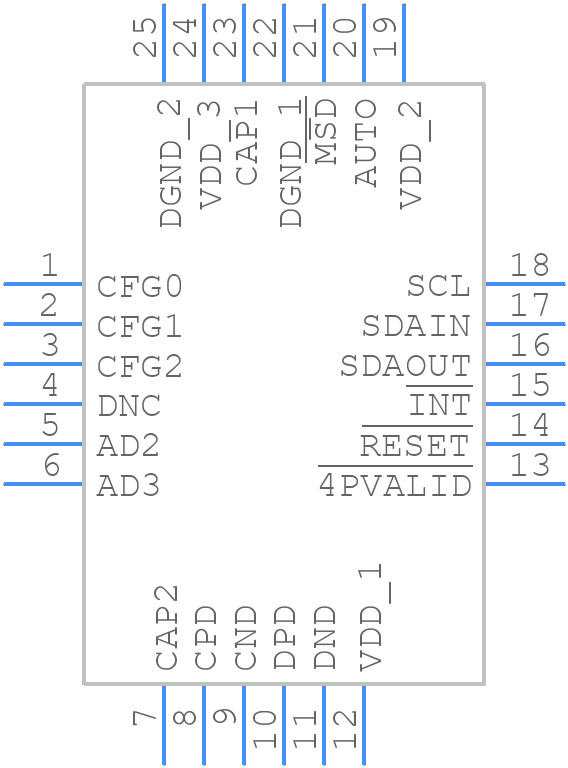

Symbol
LTC9101AUF-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC9101AUF-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom
3D Models
LTC9101AUF-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 24-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1697 Rev B)
click to zoom

LTC9101AUF-1#PBF Details

  • Manufacturer Part Number:

    LTC9101AUF-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1697

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    57 V

  • Supply Voltage-Min:

    51 V

  • Supply Voltage-Nom:

    55 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PSE CONTROLLER

LTC9101AUF-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC9101AUF-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, avoid using capacitors with high ESL (Equivalent Series Inductance).
  • The maximum ambient temperature range for the LTC9101AUF-1 is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It's recommended to keep the device within a temperature range of -40°C to 85°C for optimal performance and reliability.
  • Yes, the LTC9101AUF-1 is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device is securely attached to the PCB. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
  • To troubleshoot issues with the LTC9101AUF-1, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the input and output. Also, verify that the device is properly configured and that the recommended component values are used.
