LTC9101AUF-2#TRPBF - Analog Devices

Description: Power Over Ethernet Controller 24 Channel 802.3at (PoE+), 802.3af (PoE), 802.3bt 24-QFN (4x4)

Download LTC9101AUF-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

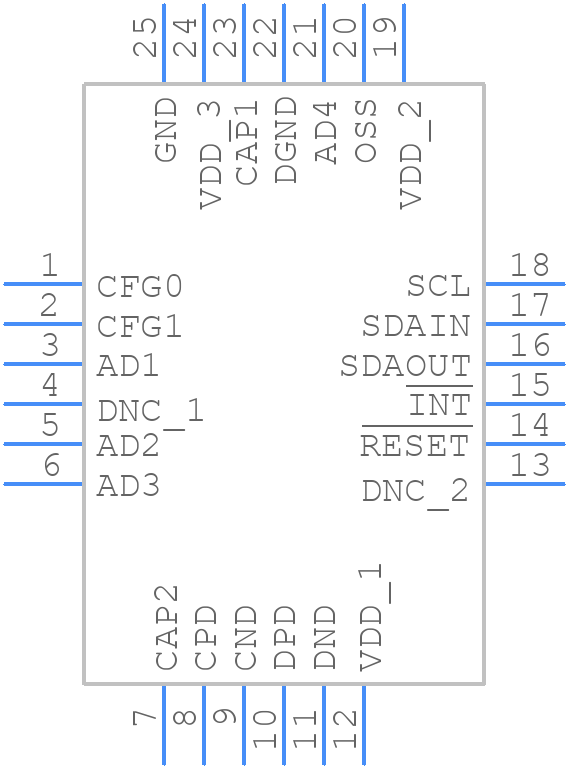

LTC9101AUF-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC9101AUF-2#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 4mm)_2026-3.3
click to zoom
3D Models
LTC9101AUF-2#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Plastic QFN (4mm × 4mm)_2026-3.3
click to zoom

LTC9101AUF-2#TRPBF Details

  • Manufacturer Part Number:

    LTC9101AUF-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2022-09-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    57 V

  • Supply Voltage-Min:

    51 V

  • Supply Voltage-Nom:

    55 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PSE CONTROLLER

LTC9101AUF-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC9101AUF-2#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 47uF. The capacitor selection should be based on the specific application requirements, such as output voltage ripple and transient response.
  • The LTC9101AUF-2#TRPBF has an operating ambient temperature range of -40°C to 125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • Proper thermal management involves providing a heat sink or a thermal pad on the PCB, ensuring good airflow, and keeping the device away from heat sources. The thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
  • The recommended input voltage range for the LTC9101AUF-2#TRPBF is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V with reduced performance. The input voltage should be well-regulated and free of noise to ensure reliable operation.
