LTC9111RDE#TRPBF footprint, schematic symbol and 3D model by Analog Devices

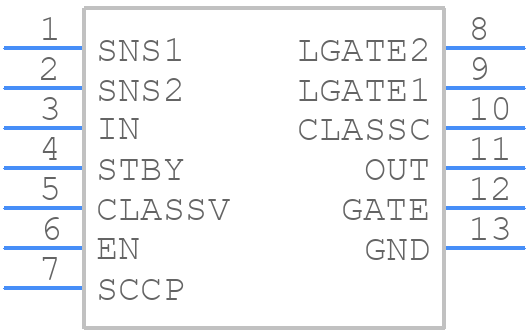

Symbol

click to zoom

PCB Footprints

LTC9111RDE#TRPBF - Analog Devices PCB footprint - Other - Other - LTC9111RDE#12-Lead Plastic DFN (4mm × 3mm)_2026-2TRPBF-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC9111RDE#TRPBF
Part Number LTC9111RDE#TRPBF
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LTC9111RDE#12-Lead Plastic DFN (4mm × 3mm)_2026-2TRPBF-2
Released Date Aug 7, 2026
Last Modified Date Aug 7, 2026 9:08 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC9111RDE#TRPBF Details

Manufacturer Part Number:
LTC9111RDE#TRPBF
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LFCSP:LEADFRM CHIP SCALE
Package Description:
DFN-12
Pin Count:
12
Manufacturer Package Code:
LFCSP:LEADFRM CHIP SCALE
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2022-09-19
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Adjustable Threshold:
NO
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-PDSO-N12
JESD-609 Code:
e3
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC12,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
1 mA
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
2.3 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LTC9111RDE#TRPBF Frequently Asked Questions (FAQs)

The recommended PCB layout for the LTC9111RDE can be found in the LTC9111 demo board manual, which provides a detailed layout guide and Gerber files for reference.
To optimize the performance of the LTC9111RDE, it's recommended to follow the application notes and design guidelines provided in the datasheet, and to consult with Analog Devices' technical support team for specific guidance on your application.
The maximum operating temperature range for the LTC9111RDE is -40°C to 125°C, as specified in the datasheet. However, it's recommended to consult the reliability report and to perform thermal analysis to ensure the device operates within a safe temperature range in your specific application.
Yes, the LTC9111RDE is suitable for high-reliability and aerospace applications. Analog Devices provides a range of documentation and support, including a reliability report, to help designers meet the requirements of these applications.
To troubleshoot issues with the LTC9111RDE, it's recommended to consult the datasheet, application notes, and design guidelines, and to use debugging tools such as oscilloscopes and logic analyzers. Additionally, Analog Devices' technical support team is available to provide guidance and support.

Trust Checks

Expert Contribution

System Verified

Community Approved

LTC9111RDE#TRPBF Overview

Use the download button to access the LTC9111RDE#TRPBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC91, or try a keyword search, such as Power Management Circuits
