LTD-2601B - Lite-On

Description: LED Displays & Accessories 2-DIG BLUE .28" Duel CARHD

Download LTD-2601B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

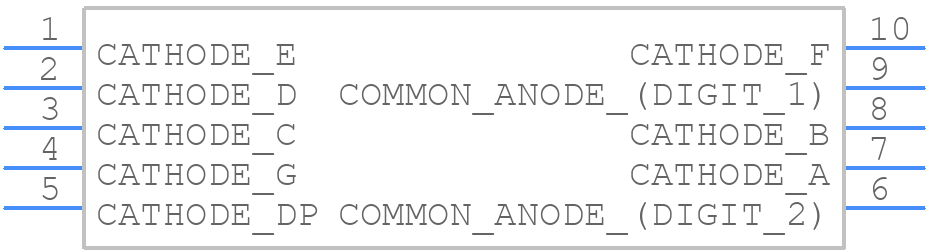

Symbol
LTD-2601B - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTD-2601B - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTD-2701JD
click to zoom
3D Models
LTD-2601B - Lite-On - 3D model - Dual-In-Line Sockets - LTD-2701JD
click to zoom

LTD-2601B Details

  • Manufacturer Part Number:

    LTD-2601B

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BLUE

  • Color@Wavelength:

    Blue

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    4.5 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    428 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

LTD-2601B Frequently Asked Questions (FAQs)

  • The recommended PCB layout for LTD-2601B involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • Proper thermal management of LTD-2601B involves attaching a heat sink to the device, using thermal interface material, and ensuring good airflow around the device. The heat sink should be designed to keep the junction temperature below 125°C.
  • The maximum allowable voltage on the enable pin of LTD-2601B is 6V. Exceeding this voltage may damage the device.
  • LTD-2601B is rated for operation up to 85°C ambient temperature. However, the device can be used in high-temperature environments up to 105°C with derating. Consult the datasheet for derating curves and guidelines.
  • To troubleshoot issues with LTD-2601B, check the input voltage, output voltage, and current. Verify that the device is properly thermally managed and that the PCB layout is correct. Check for any signs of physical damage or contamination. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTD-2601B Overview

Use the download button to access the LTD-2601B schematic symbol, PCB footprint, and 3D model.
