LTD-4608JF - Lite-On

Description: Display Modules - LED Character and Numeric Orange-Yellow 7-Segment 2 Character Common Anode 2.05V 20mA 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) 10-DIP (0.400", 10.16mm)

Download LTD-4608JF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

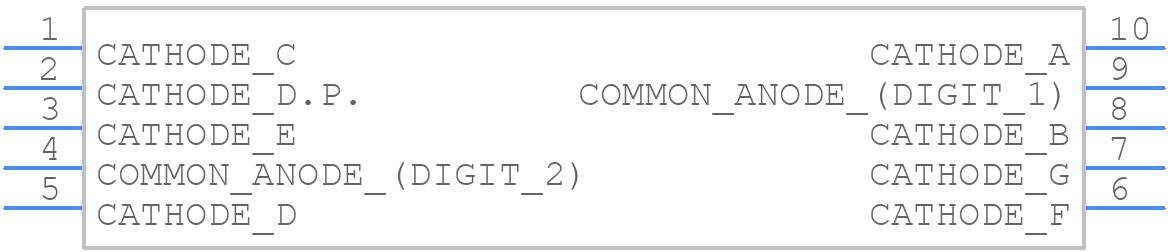

LTD-4608JF - Lite-On - PCB symbol
click to zoom
PCB Footprints

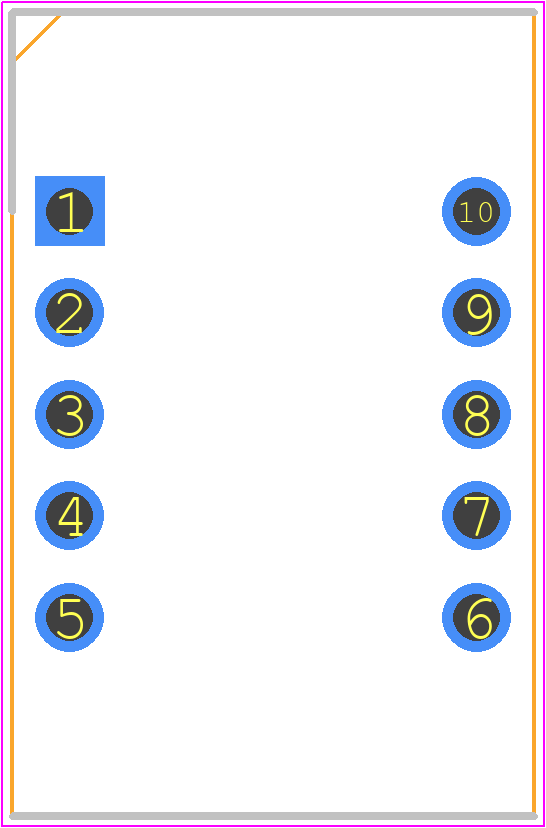

LTD-4608JF - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.400", 10.16mm)
click to zoom

LTD-4608JF Details

  • Manufacturer Part Number:

    LTD-4608JF

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    5

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    YELLOW ORANGE

  • Color@Wavelength:

    Amber

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    10 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • JESD-609 Code:

    e0

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    611 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)
