Description:Display Modules - LED Character and Numeric Yellow 7-Segment 2 Character Common Anode 2.05V 20mA 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) 10-DIP (0.400", 10.16mm)
COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display Height:
10 mm
Forward Current-Max:
0.025 A
Forward Voltage-Max:
2.6 V
Number of Characters:
2
Number of Functions:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-35 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
588 nm
LTD-4608JS Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the LTD-4608JS package, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal contact between the device and the heat sink. Additionally, consider using a thermal interface material (TIM) to reduce thermal resistance.
The maximum allowable voltage derating for the LTD-4608JS is typically 80% of the maximum rated voltage. However, it is recommended to consult with the manufacturer or a qualified engineer to determine the appropriate derating factor for a specific application.
The LTD-4608JS is not designed for use in high-humidity environments. If operation in a humid environment is required, consider using a conformal coating or potting the device to protect it from moisture. However, this may affect the device's thermal performance and reliability.
The recommended soldering profile for the LTD-4608JS involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It is essential to follow the manufacturer's recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTD-4608JS Overview

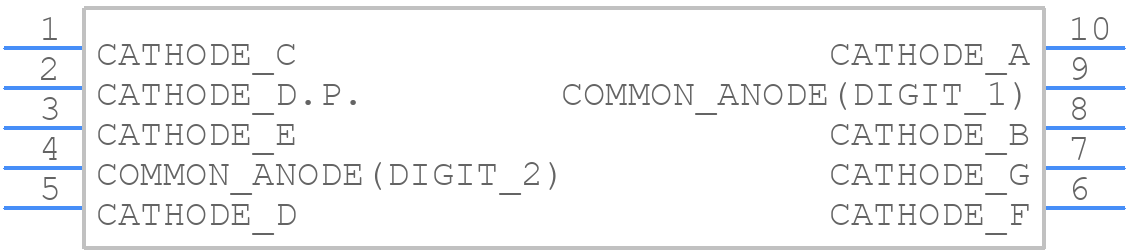

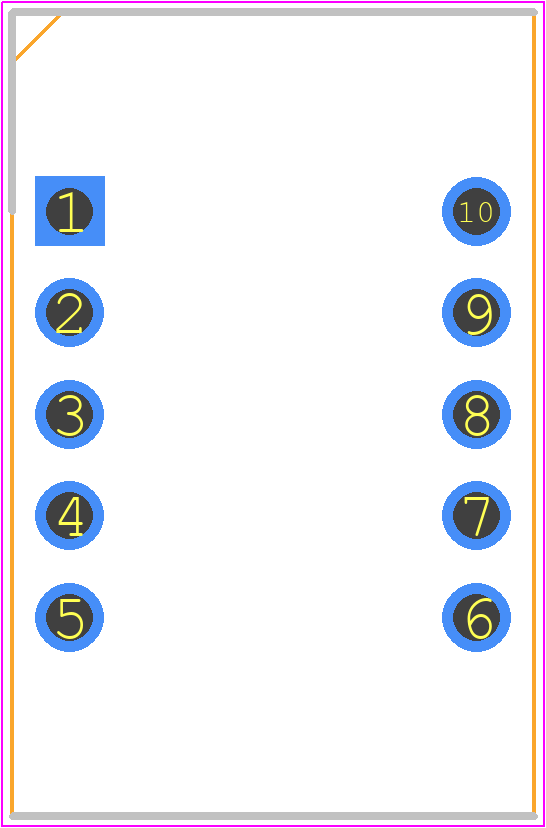

Use the download button to access the LTD-4608JS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTD-4,
or try a keyword search, such as LED Displays
