LTD-6710P - Lite-On

Description: LED Displays & Accessories RED 657NM 20MA 2 DIGIT 7 SEGMENT

Download LTD-6710P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

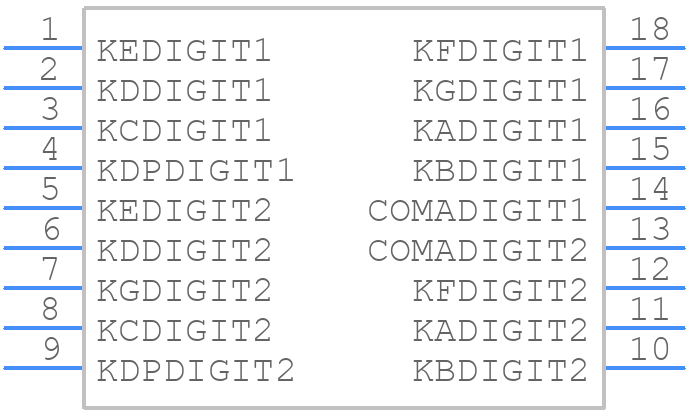

Symbol
LTD-6710P - Lite-On - PCB symbol
click to zoom

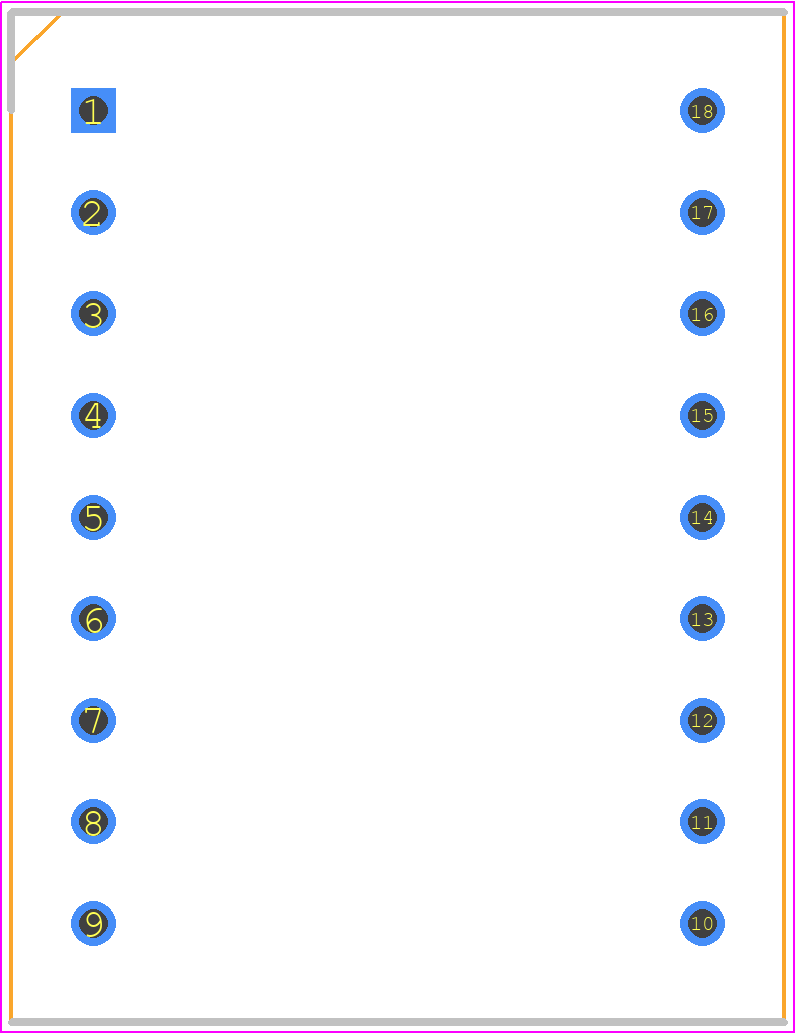

PCB Footprints
LTD-6710P - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LIT- ON
click to zoom

LTD-6710P Details

  • Manufacturer Part Number:

    LTD-6710P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Not Compliant

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.015 A

  • Forward Voltage-Max:

    2.8 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    697 nm

LTD-6710P Frequently Asked Questions (FAQs)

  • The recommended PCB layout for LTD-6710P involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • Proper thermal management of LTD-6710P involves attaching a heat sink to the device, using thermal interface material, and ensuring good airflow around the device. The heat sink should be designed to keep the junction temperature below 125°C.
  • The maximum allowed voltage on the enable pin of LTD-6710P is 6V. Exceeding this voltage may damage the device.
  • LTD-6710P is rated for operation up to 85°C ambient temperature. However, the device can be used in high-temperature environments up to 105°C with derating. Consult the datasheet for derating curves and guidelines.
  • To troubleshoot LTD-6710P, check the input voltage, output voltage, and enable pin voltage. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check for oscillations or other anomalies on the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTD-6710P Overview

Use the download button to access the LTD-6710P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LTD-6, or try a keyword search, such as LED Displays
