LTD056BUE-103A-01 - WENRUN

Description: Display: LED; 7-segment; 14.22mm; 0.56"; No.char: 3; red; 11.6mcd

Download LTD056BUE-103A-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTD056BUE-103A-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

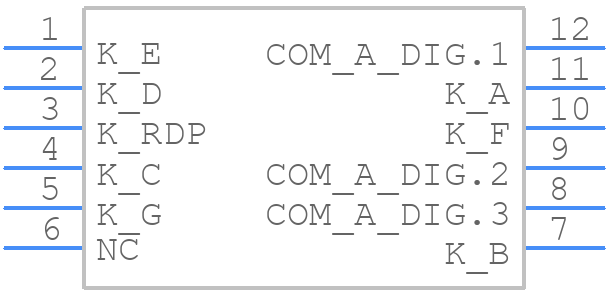

LTD056BUE-103A-01 - WENRUN - PCB symbol

PCB Footprints

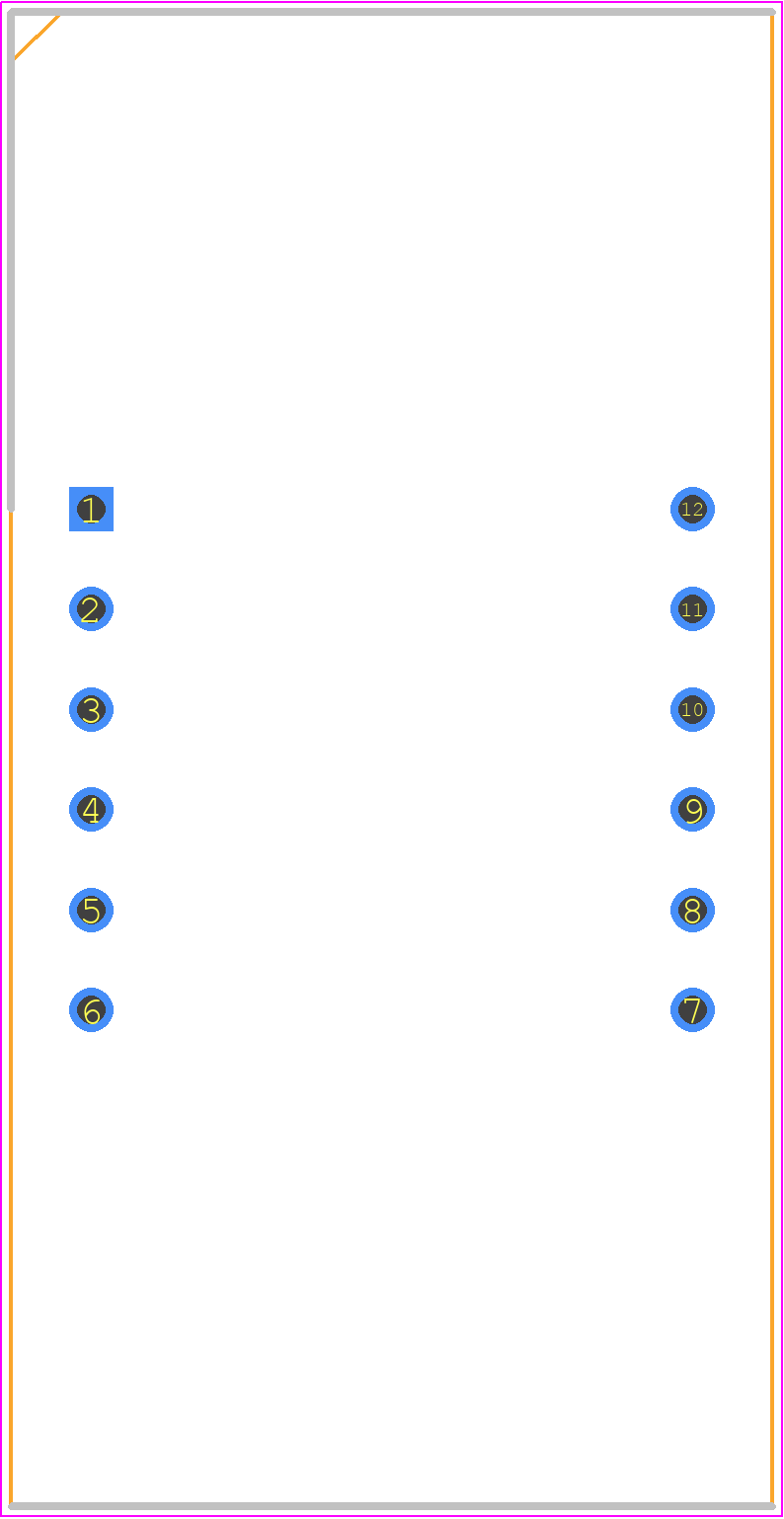

LTD056BUE-103A-01 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP12

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTD056BUE-103A-01
Part Number LTD056BUE-103A-01
Manufacturer WENRUN
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP12
Released Date Apr 14, 2024
Last Modified Date Apr 14, 2024 4:33 PM UTC
Pinout / Pin List Click Here (Member Only)

LTD056BUE-103A-01 Details

Manufacturer Part Number:
LTD056BUE-103A-01
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LTD056BUE-103A-01 Overview

Use the download button to access the LTD056BUE-103A-01 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LTD05, or try a keyword search, such as LED Displays
