LTL-2450Y - Lite-On

Description: LED Bars and Arrays 1 BAR Yellow

Download LTL-2450Y Model

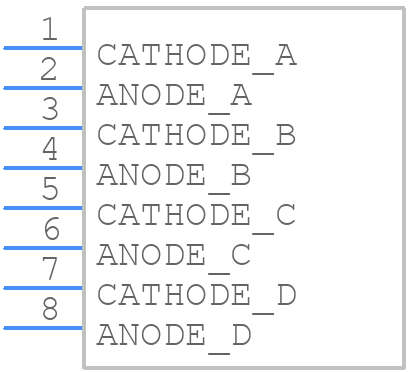

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTL-2450Y - Lite-On PCB footprint - Other - Other - LTL-2450Y-3
click to zoom
3D Models
LTL-2450Y - Lite-On  - 3D model - Other - LTL-2450Y-3
click to zoom

LTL-2450Y Details

  • Manufacturer Part Number:

    LTL-2450Y

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    5

  • Color:

    YELLOW

  • Color@Wavelength:

    Yellow

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.8 V

  • JESD-609 Code:

    e0

  • Luminous Intensity-Min:

    0.006 cd

  • Luminous Intensity-Nom:

    8.0 mcd

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    6.22 mm

  • Packing Method:

    BULK

  • Peak Wavelength:

    585 nm

  • Shape:

    RECTANGULAR

  • Size:

    19 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Pitch:

    2.54 mm

LTL-2450Y Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTL-2450Y involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material.
  • The maximum allowable voltage drop across the LTL-2450Y is typically around 0.5V to 1V, depending on the specific application and operating conditions. Exceeding this voltage drop may affect the device's performance and reliability.
  • Yes, the LTL-2450Y can be used in switching power supply designs, but it's essential to ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, consider using a suitable output capacitor to filter the output voltage.
  • To troubleshoot issues with the LTL-2450Y, start by verifying the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Check the PCB layout, component values, and soldering quality. Ensure that the device is properly decoupled and bypassed, and that the output capacitor is suitable for the application.
