LTM-8522G - Lite-On

Description: Display Modules - LED Character and Numeric Green 7-Segment 3 Character Serial Input 0.4mA 0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm) 18-DIP (0.600", 15.24mm)

Download LTM-8522G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

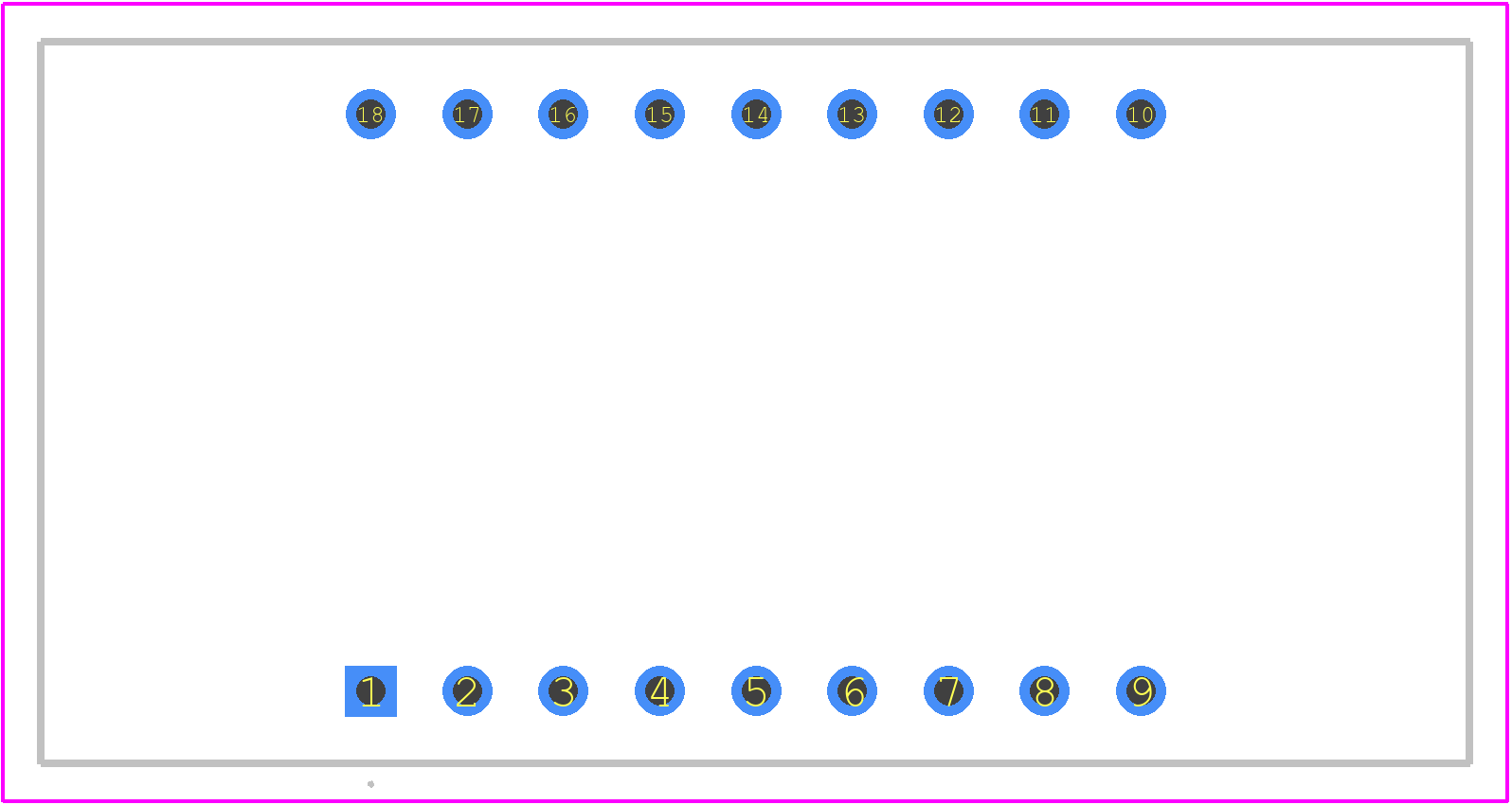

LTM-8522G - Lite-On PCB footprint - Other - Other - DIP-18
click to zoom
3D Models
LTM-8522G - Lite-On  - 3D model - Other - DIP-18
click to zoom

LTM-8522G Details

  • Manufacturer Part Number:

    LTM-8522G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    TTL COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMPLEX

  • Display Height:

    14.22 mm

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm
