LTM2810HY-S#PBF - Analog Devices

Description: Digital Isolators 7.5kV SPI/Dig uMod ISO w Trans Drvr

Download LTM2810HY-S#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

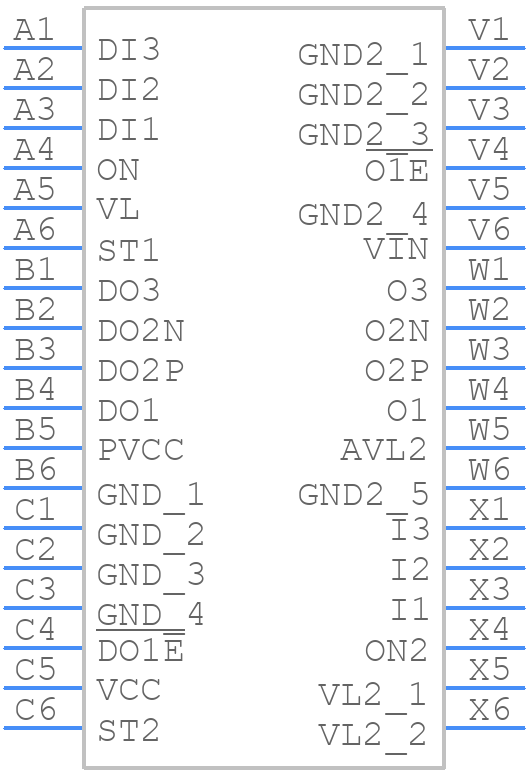

LTM2810HY-S#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2810HY-S#PBF - Analog Devices PCB footprint - Other - Other - 36-Lead (22mm × 6.25mm × 2.06mm)-1
click to zoom
3D Models
LTM2810HY-S#PBF - Analog Devices - 3D model - Other - 36-Lead (22mm × 6.25mm × 2.06mm)-1
click to zoom

LTM2810HY-S#PBF Details

  • Manufacturer Part Number:

    LTM2810HY-S#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1588

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-01-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PBGA-B36

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.31 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6.25 mm

LTM2810HY-S#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielded cables for sensitive signals.
  • The LTM2810HY-S#PBF has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Also, follow the thermal design guidelines provided in the datasheet.
  • The datasheet provides some guidance on input and output filtering, but it's recommended to use additional filtering to reduce noise and EMI. A good starting point is to use a pi-filter (series inductor and shunt capacitor) on the input and output lines, and to add additional filtering components as needed based on the specific application.
  • To troubleshoot issues with the LTM2810HY-S#PBF, start by checking the power supply voltage, input and output signals, and PCB layout for any errors or noise. Use an oscilloscope to measure the signals and look for any signs of oscillation or instability. Also, check the device's thermal performance and ensure it's within the recommended operating range.
  • The LTM2810HY-S#PBF is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper design and testing. However, it's recommended to consult with Analog Devices' application engineers and to follow the device's recommended operating conditions and derating guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2810HY-S#PBF Overview

Use the download button to access the LTM2810HY-S#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs
