LTM2883CY-3S#PBF - Analog Devices

Description: Digital Isolators SPI uModule Isolator with Adjustable +/-12.5V and 5V Regulated Power

Download LTM2883CY-3S#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

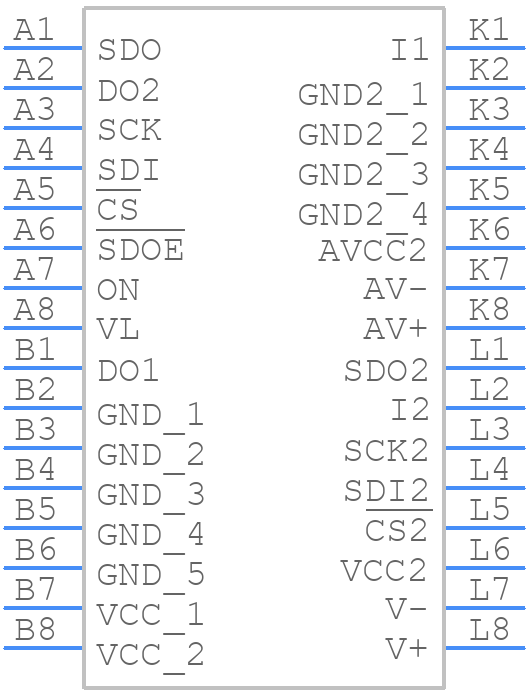

Symbol
LTM2883CY-3S#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2883CY-3S#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm × 11.25mm × 3.42mm)_
click to zoom
3D Models
LTM2883CY-3S#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm × 11.25mm × 3.42mm)_
click to zoom

LTM2883CY-3S#PBF Details

  • Manufacturer Part Number:

    LTM2883CY-3S#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.62 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.25 mm

LTM2883CY-3S#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2883CY-3S involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the power supply. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VIN pin and GND, and a 0.1uF ceramic capacitor between the VCC pin and GND. Additionally, use a 1uF capacitor between the VOUT pin and GND for output decoupling.
  • The LTM2883CY-3S supports cable lengths up to 10 meters (33 feet) for USB 2.0 and up to 3 meters (10 feet) for USB 3.0, assuming a good quality cable with proper shielding and termination.
  • To configure the LTM2883CY-3S for USB 3.0 operation, connect the USB3_EN pin to a logic high (VCC) and ensure the USB 3.0 signal lines are properly terminated with 45Ω resistors to VCC and GND.
  • To manage thermal dissipation, use a thermal pad or a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the IC. The maximum junction temperature (TJ) should not exceed 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2883CY-3S#PBF Overview

Use the download button to access the LTM2883CY-3S#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs
