LTM2883CY-5I#PBF - Analog Devices

Description: Digital Isolators I2C uModule Isolator with Adjustable +/-12.5V and 5V Regulated Power

Download LTM2883CY-5I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

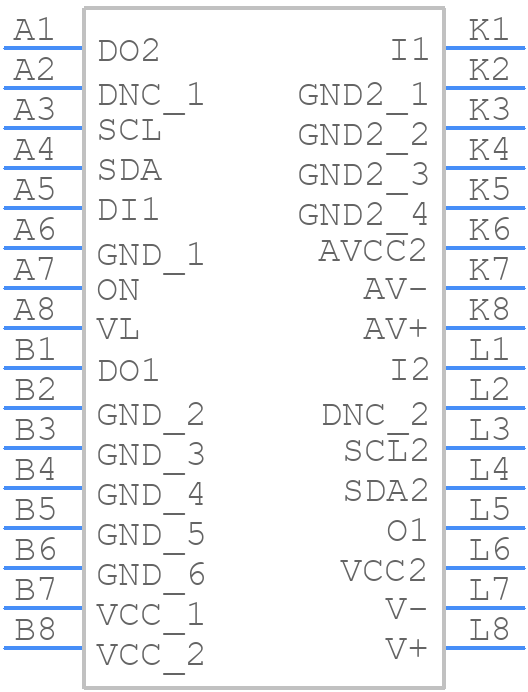

LTM2883CY-5I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2883CY-5I#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2883CY-5I#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2883CY-5I#PBF Details

  • Manufacturer Part Number:

    LTM2883CY-5I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2883CY-5I#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the LTM2883CY-5I#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the reliability of the LTM2883CY-5I#PBF in high-temperature applications, it is recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the device within its specified operating temperature range. Additionally, it is recommended to follow the recommended soldering and assembly procedures to prevent thermal stress on the device.
  • The maximum cable length that can be used with the LTM2883CY-5I#PBF depends on the specific application and the type of cable used. However, as a general rule, it is recommended to keep the cable length as short as possible to minimize signal attenuation and noise. A maximum cable length of 1-2 meters is typically recommended.
  • Yes, the LTM2883CY-5I#PBF can be used in isolated applications. The device has a galvanic isolation barrier between the input and output stages, which allows it to be used in applications where isolation is required. However, it is recommended to follow proper isolation design practices and to ensure that the device is used within its specified isolation ratings.
  • Common issues with the LTM2883CY-5I#PBF include incorrect output voltage, oscillations, and overheating. To troubleshoot these issues, it is recommended to check the power supply voltage, ensure proper PCB layout and thermal management, and verify that the device is used within its specified operating conditions. Additionally, it is recommended to consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2883CY-5I#PBF Overview

Use the download button to access the LTM2883CY-5I#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Other Interface ICs
