LTM2883IY-3I#PBF - Analog Devices

Description: Digital Isolator Logic 6-CH 10Mbps Automotive 32-Pin BGA

Download LTM2883IY-3I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

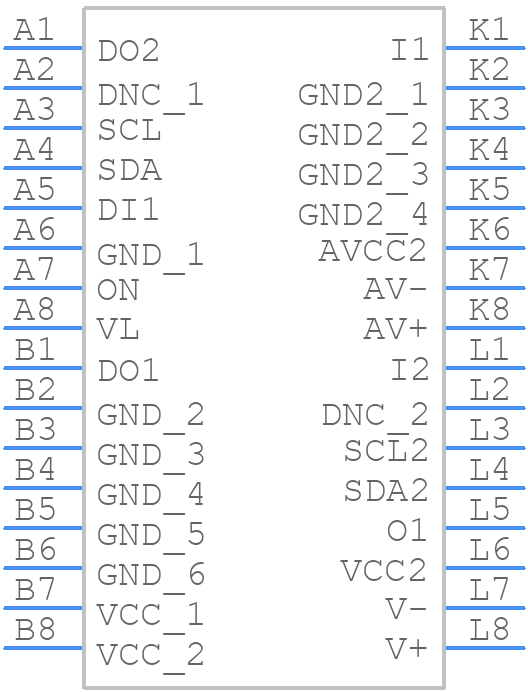

LTM2883IY-3I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2883IY-3I#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2883IY-3I#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2883IY-3I#PBF Details

  • Manufacturer Part Number:

    LTM2883IY-3I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.25 mm

LTM2883IY-3I#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50Ω transmission lines for signal traces.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, consult the datasheet for thermal derating guidelines and maximum junction temperature ratings.
  • To minimize EMI and RFI, follow proper PCB design practices, such as using shielding, filtering, and grounding techniques. Additionally, ensure that the device is properly decoupled, and use EMI-absorbing materials around the device. Consult the datasheet for specific EMI and RFI guidelines.
  • No, the LTM2883IY-3I#PBF is an isolated device, and it's not recommended to use it in a non-isolated application. The device is designed to provide electrical isolation between the input and output, and using it in a non-isolated application may compromise safety and reliability.
  • The recommended input voltage range for the LTM2883IY-3I#PBF is 3.15V to 5.5V. Operating the device outside of this range may affect its performance, reliability, and accuracy.
