LTM2883IY-5I#PBF - Analog Devices

Description: Digital Isolator Logic 6-CH 10Mbps Automotive 32-Pin BGA

Download LTM2883IY-5I#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

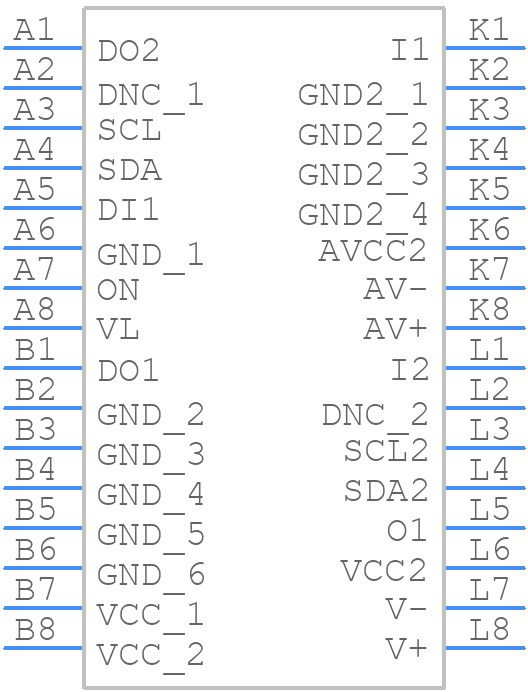

Symbol
LTM2883IY-5I#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2883IY-5I#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2883IY-5I#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2883IY-5I#PBF Details

  • Manufacturer Part Number:

    LTM2883IY-5I#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PBGA-B32

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA32,8X11,50

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11.25 mm

LTM2883IY-5I#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50Ω transmission lines for signal traces.
  • The LTM2883IY-5I#PBF has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Also, follow the recommended thermal design guidelines in the datasheet.
  • The datasheet provides some guidance on input and output filtering, but it's recommended to use a pi-filter (series inductor and shunt capacitor) on the input and output lines to reduce noise and EMI. The specific filter component values will depend on the application and frequency range.
  • To troubleshoot issues with the LTM2883IY-5I#PBF, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Then, use a scope to measure the input and output waveforms, and check for signs of oscillation or instability. Also, verify that the power supply and input signals are within the recommended specifications.
  • The LTM2883IY-5I#PBF is designed for isolated applications, and using it in a non-isolated application may compromise its performance and safety. If a non-isolated application is required, consider using a different device or consulting with an Analog Devices application engineer.
