LTM2884HY#PBF - Analog Devices

Description: Isolated USB Transceiver with Isolated Power

Download LTM2884HY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

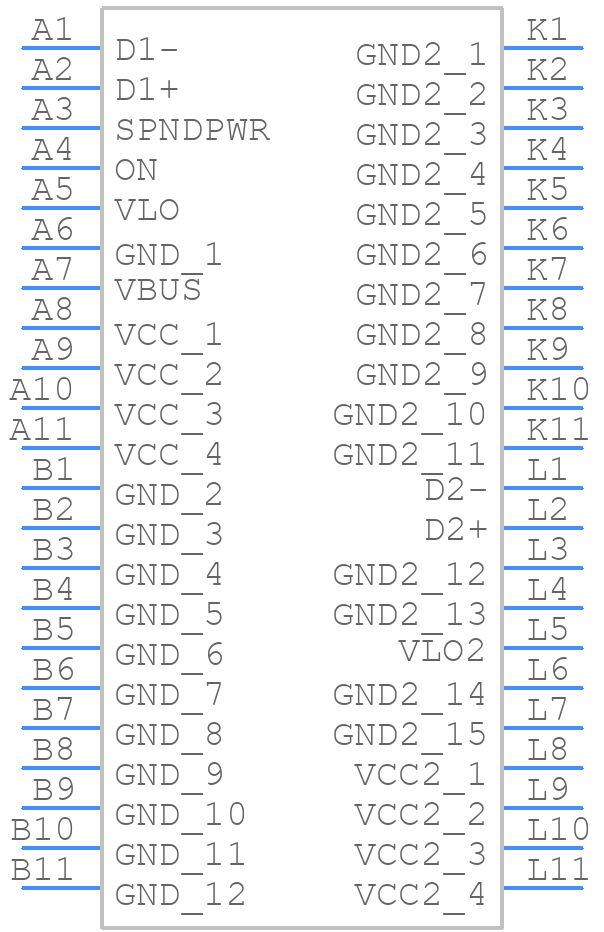

LTM2884HY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

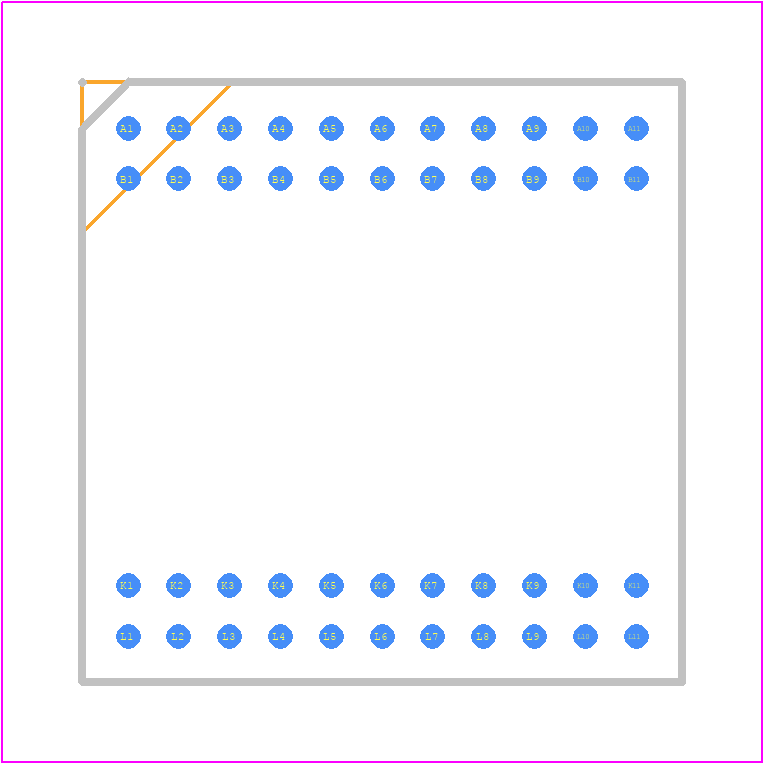

LTM2884HY#PBF - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA
click to zoom
3D Models
LTM2884HY#PBF - Analog Devices - 3D model - BGA - CHIP SCALE BGA
click to zoom

LTM2884HY#PBF Details

  • Manufacturer Part Number:

    LTM2884HY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1881

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-XXMA-B44

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.22 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LTM2884HY#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use short, wide traces for power and ground connections.
  • Follow the power-up sequence outlined in the datasheet. Ensure that VCC is powered up before VEE, and that the EN pin is high before the input signals are applied. Also, configure the device according to the application note and datasheet recommendations.
  • The LTM2884HY has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device is expected to dissipate high power. Follow the thermal management guidelines in the datasheet and application notes.
  • Use an oscilloscope to check the input and output signals, and verify that the power supplies are stable. Check the device's configuration and ensure that it is properly powered up. Consult the datasheet, application notes, and Analog Devices' support resources for troubleshooting guidance.
  • Yes, follow proper EMI/EMC design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering as needed. Ensure that the device is properly decoupled and that the PCB layout is optimized for EMI/EMC performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2884HY#PBF Overview

Use the download button to access the LTM2884HY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
