LTM2884IY#PBF - Analog Devices

Description: Isolated USB Transceiver with Isolated Power

Download LTM2884IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

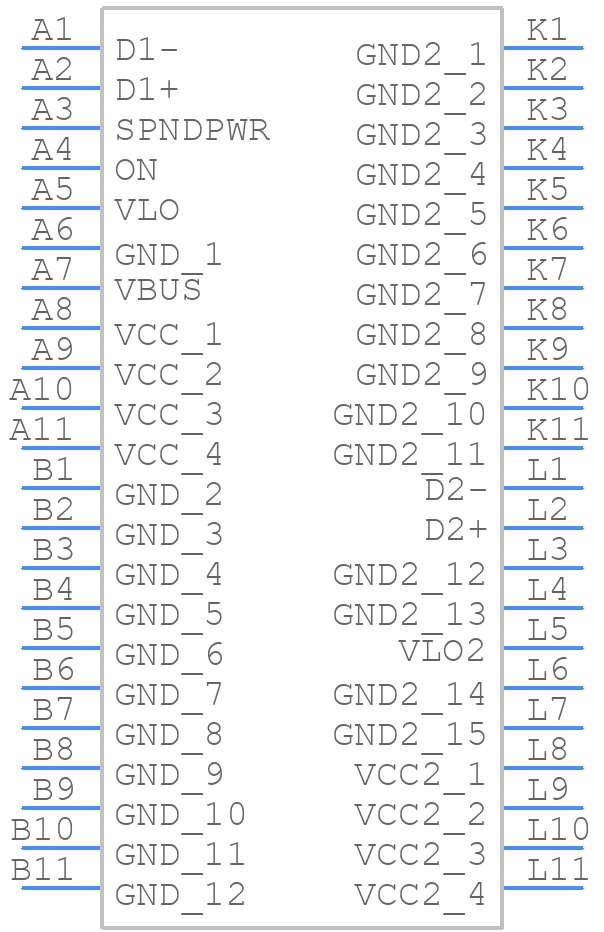

Symbol
LTM2884IY#PBF - Analog Devices - PCB symbol
click to zoom

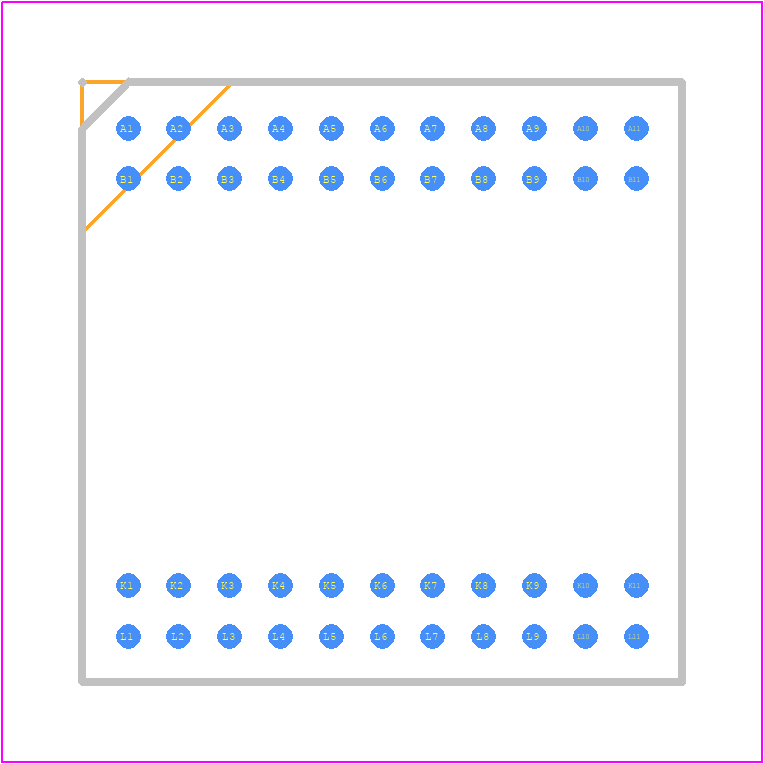

PCB Footprints
LTM2884IY#PBF - Analog Devices PCB footprint - BGA - BGA - CHIP SCALE BGA
click to zoom
3D Models
LTM2884IY#PBF - Analog Devices - 3D model - BGA - CHIP SCALE BGA
click to zoom

LTM2884IY#PBF Details

  • Manufacturer Part Number:

    LTM2884IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1881

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-XXMA-B44

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.22 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

LTM2884IY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2884IY#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the LTM2884IY#PBF, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, use a 10kΩ resistor in series with the VCC pin to prevent voltage spikes.
  • The LTM2884IY#PBF supports cable lengths up to 10 meters (33 feet) for USB 2.0 and up to 3 meters (10 feet) for USB 3.0, assuming a good quality cable with proper shielding and termination.
  • To troubleshoot issues with the LTM2884IY#PBF, start by checking the power supply and decoupling, then verify the signal integrity and cable quality. Use an oscilloscope to check the signal waveforms and a logic analyzer to verify the protocol compliance. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the LTM2884IY#PBF is designed to support hot-swapping, but it's essential to follow proper hot-swap design guidelines, including using a power switch, a current limiter, and a voltage supervisor to ensure safe and reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2884IY#PBF Overview

Use the download button to access the LTM2884IY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
