LTM2885IY#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM2885IY#PBF - RS422/RS485 TRANSCEIVER, 20MBPS, BGA-42

Download LTM2885IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

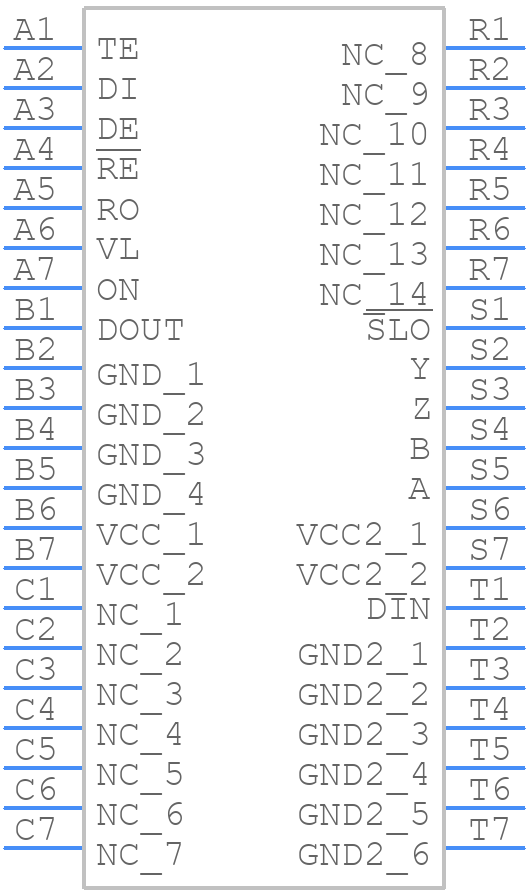

LTM2885IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

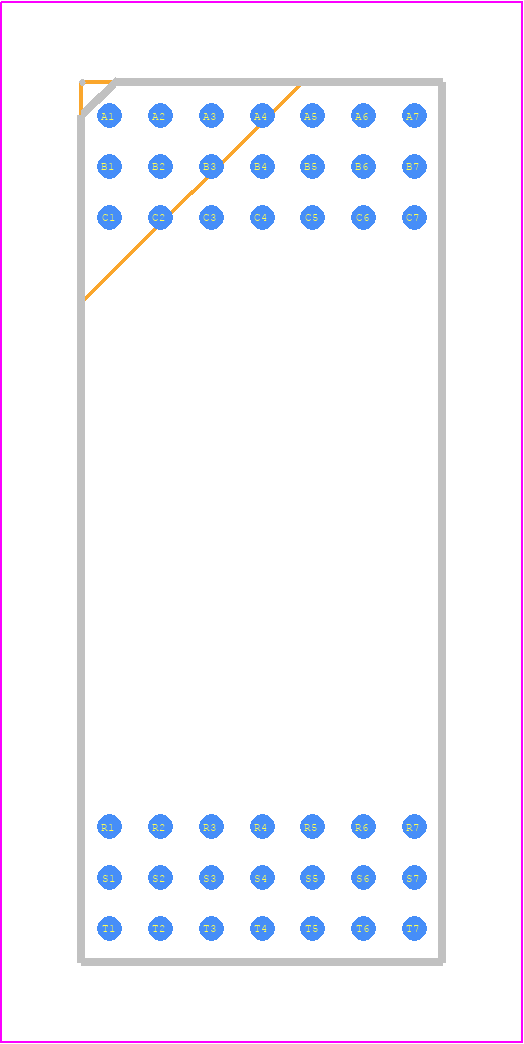

LTM2885IY#PBF - Analog Devices PCB footprint - Other - Other - LTM2885IY
click to zoom
3D Models
LTM2885IY#PBF - Analog Devices - 3D model - Other - LTM2885IY
click to zoom

LTM2885IY#PBF Details

  • Manufacturer Part Number:

    LTM2885IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-42

  • Pin Count:

    42

  • Manufacturer Package Code:

    05-08-1960

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-XXMA-B42

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Receive Delay-Max:

    50 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    5.41 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    170 ns

  • Width:

    9 mm

LTM2885IY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2885IY#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the LTM2885IY#PBF, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, use a 10kΩ resistor in series with the VCC pin to prevent voltage spikes.
  • The maximum cable length for the USB interface of the LTM2885IY#PBF is 3 meters (10 feet) for a standard USB cable. However, this can be extended up to 5 meters (16.4 feet) using an active USB extension cable or a USB repeater.
  • To configure the LTM2885IY#PBF for optimal EMI performance, use a shielded enclosure, keep the device away from other noise sources, and use a common-mode choke on the USB lines. Additionally, use a low-pass filter on the power lines and ensure good grounding and shielding of the PCB.
  • The recommended operating temperature range for the LTM2885IY#PBF is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.
