LTM2889CY-3#PBF - Analog Devices

Description: Isolated CAN FD µModule Transceiver and Power

Download LTM2889CY-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

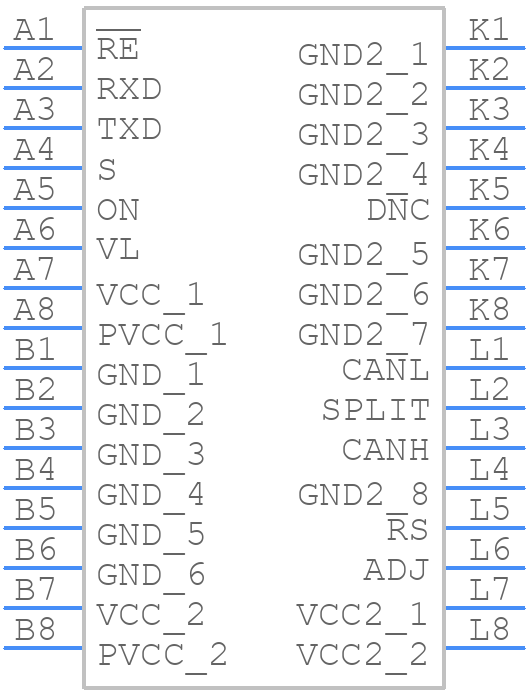

LTM2889CY-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2889CY-3#PBF - Analog Devices PCB footprint - BGA - BGA - BGA 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom
3D Models
LTM2889CY-3#PBF - Analog Devices - 3D model - BGA - BGA 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom

LTM2889CY-3#PBF Details

  • Manufacturer Part Number:

    LTM2889CY-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2889CY-3#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • When using the LTM2889CY-3#PBF in a system with multiple power domains, it's essential to ensure that the device is properly isolated from other power domains to prevent noise and interference. This can be achieved using isolation techniques such as optocouplers, transformers, or digital isolators.
  • To troubleshoot issues with the LTM2889CY-3#PBF, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Then, use debugging tools such as oscilloscopes and logic analyzers to identify the source of the issue. It's also recommended to consult with Analog Devices' technical support team for further assistance.
  • When using the LTM2889CY-3#PBF in a system with high-voltage inputs, it's essential to ensure that the device is properly protected from overvoltage conditions. This can be achieved using voltage clamping devices, such as TVS diodes, or by using input protection circuits to limit the voltage seen by the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2889CY-3#PBF Overview

Use the download button to access the LTM2889CY-3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Network Interfaces
