LTM2889CY-5#PBF - Analog Devices

Description: Isolated CAN FD µModule Transceiver and Power –0.3V to 6V,±60V,–40°C to 85°C

Download LTM2889CY-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

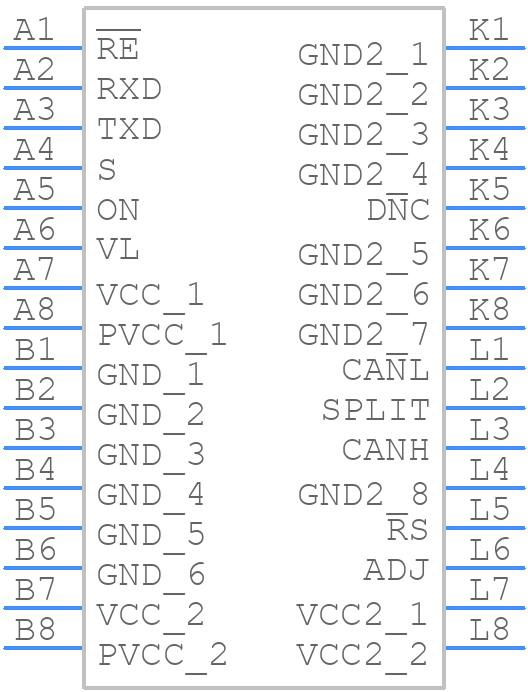

LTM2889CY-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2889CY-5#PBF - Analog Devices PCB footprint - BGA - BGA - BGA 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom
3D Models
LTM2889CY-5#PBF - Analog Devices - 3D model - BGA - BGA 32-Lead (15mm × 11.25mm × 3.42mm)
click to zoom

LTM2889CY-5#PBF Details

  • Manufacturer Part Number:

    LTM2889CY-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2889CY-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2889CY-5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces carrying high-frequency signals.
  • To ensure proper powering and decoupling of the LTM2889CY-5#PBF, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor and a 1uF film capacitor in parallel, placed as close as possible to the device's power pins.
  • The maximum cable length that can be used with the LTM2889CY-5#PBF depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 1 meter) to minimize signal attenuation and noise pickup.
  • To troubleshoot common issues with the LTM2889CY-5#PBF, start by checking the power supply and decoupling, then verify the input and output connections, and finally, use an oscilloscope to check for oscillations or incorrect output voltage. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The LTM2889CY-5#PBF is rated for operation up to 125°C, but it's recommended to derate the device's performance and power dissipation at high temperatures. Consult the datasheet and application notes for specific guidelines on using the device in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2889CY-5#PBF Overview

Use the download button to access the LTM2889CY-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
