LTM2889IY-3#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTM2889IY-3#PBF - CAN Bus, CAN, 3 V, 3.6 V, BGA

Download LTM2889IY-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

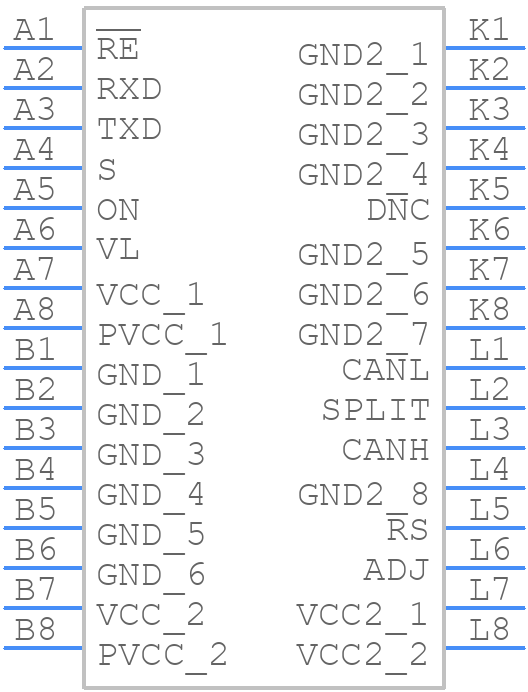

LTM2889IY-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2889IY-3#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2889IY-3#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2889IY-3#PBF Details

  • Manufacturer Part Number:

    LTM2889IY-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm
