LTM2889IY-5#PBF - Analog Devices

Description: Isolated CAN FD µModule Transceiver and Power, BGA package

Download LTM2889IY-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

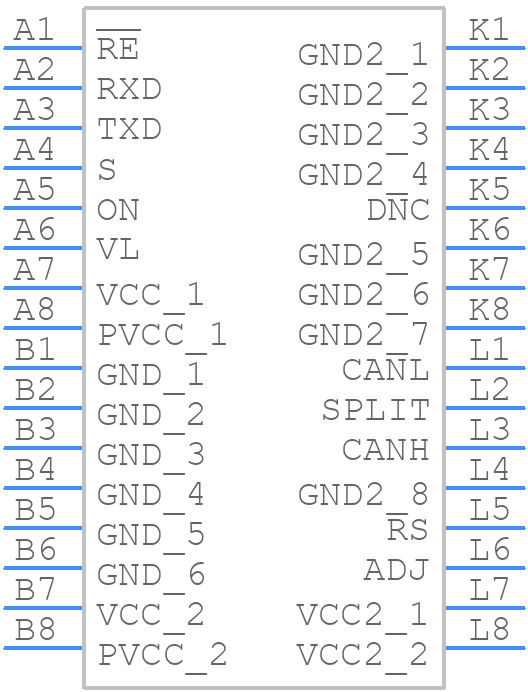

LTM2889IY-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2889IY-5#PBF - Analog Devices PCB footprint - BGA - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom
3D Models
LTM2889IY-5#PBF - Analog Devices - 3D model - BGA - 32-Lead (15mm x 11.25mm x 3.42mm)
click to zoom

LTM2889IY-5#PBF Details

  • Manufacturer Part Number:

    LTM2889IY-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1851

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Rate:

    4000 Mbps

  • JESD-30 Code:

    R-PBGA-B32

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.25 mm

LTM2889IY-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2889IY-5#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the power supply. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling of the LTM2889IY-5#PBF, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 10uF and 100nF) close to the IC's power pins. Additionally, use a 10kΩ resistor in series with the input capacitor to prevent oscillations.
  • The LTM2889IY-5#PBF has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure proper thermal management and heat dissipation in the system design.
  • To troubleshoot common issues with the LTM2889IY-5#PBF, start by checking the power supply and decoupling, ensuring that the input voltage is within the recommended range and that the decoupling capacitors are properly sized and placed. Next, verify that the PCB layout is correct, and the analog and digital grounds are separated. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization.
  • The LTM2889IY-5#PBF is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) for guidance on using the LTM2889IY-5#PBF in high-reliability or safety-critical applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTM2889IY-5#PBF Overview

Use the download button to access the LTM2889IY-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
